Building Your T-Bot
The video provides a good overview of the build procedure but we recommend you follow the step by step slides. Please see the warnings below before you proceed. We hope enjoy building your T-Bot!

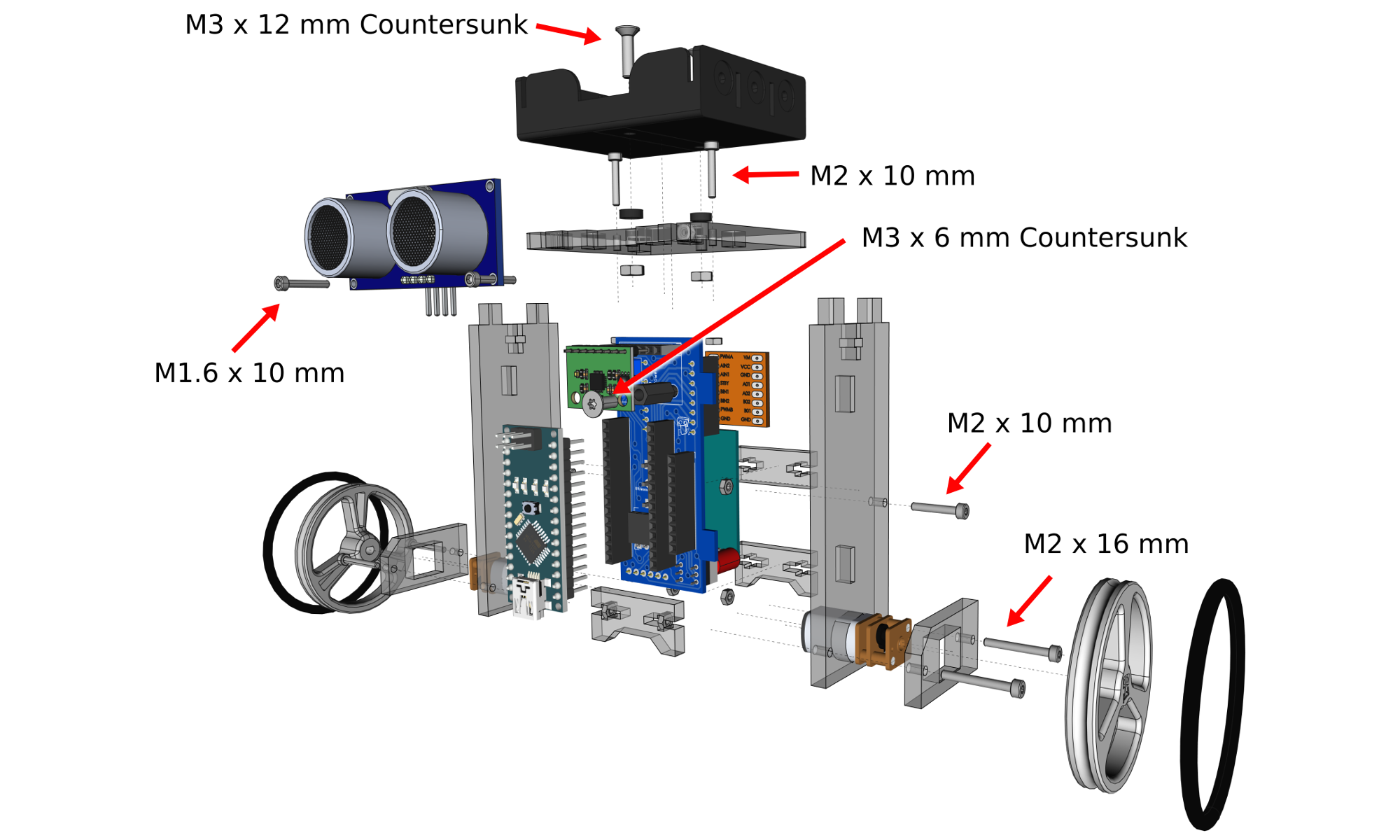

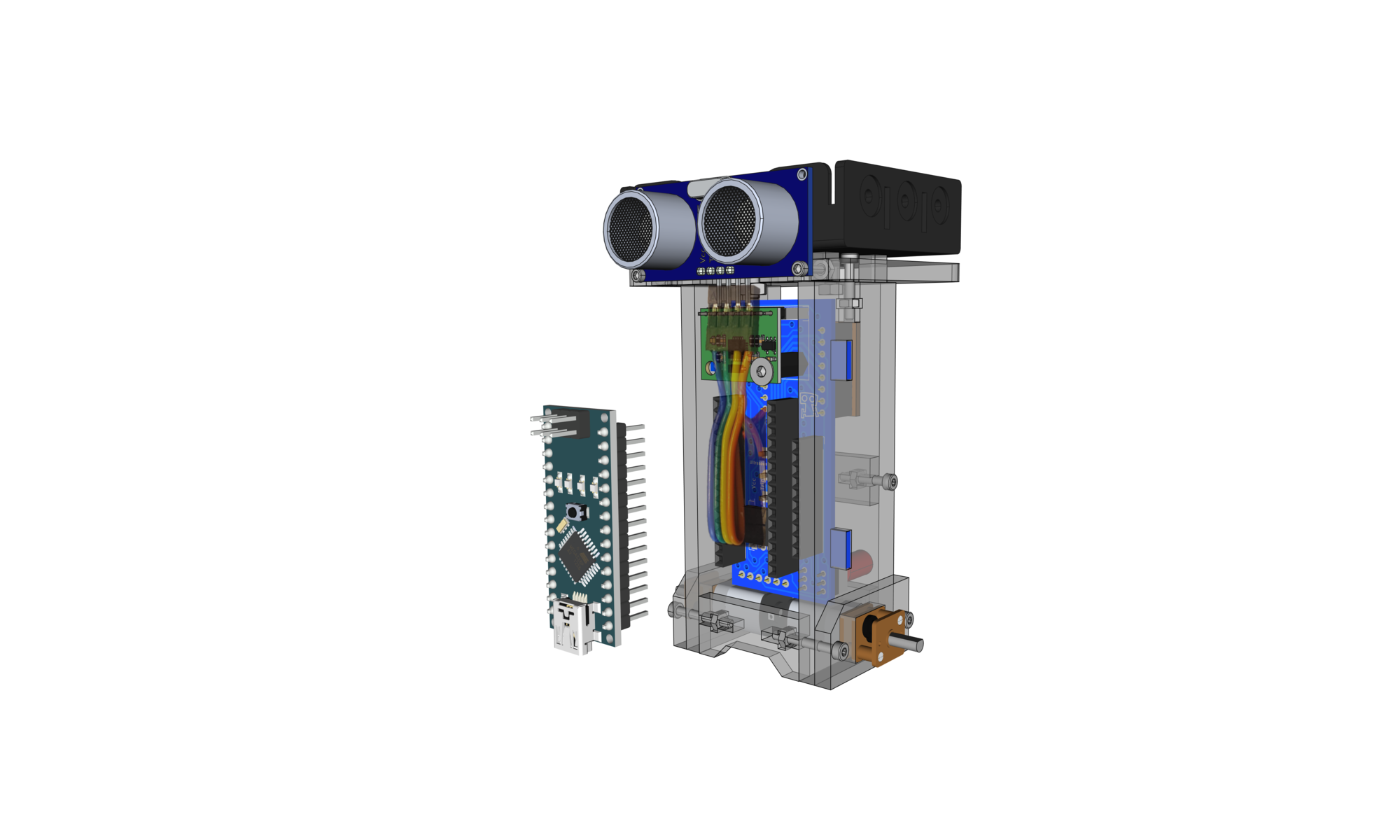

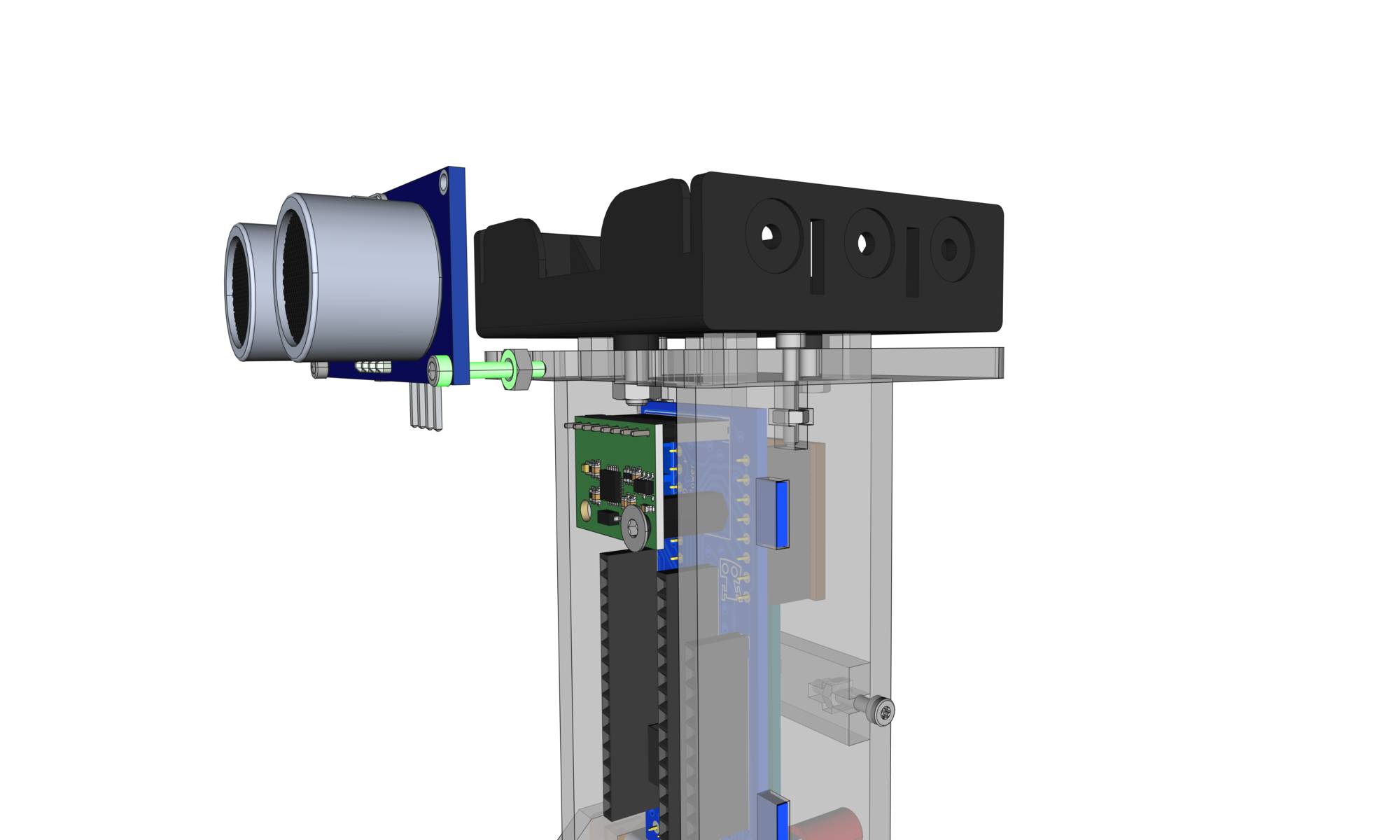

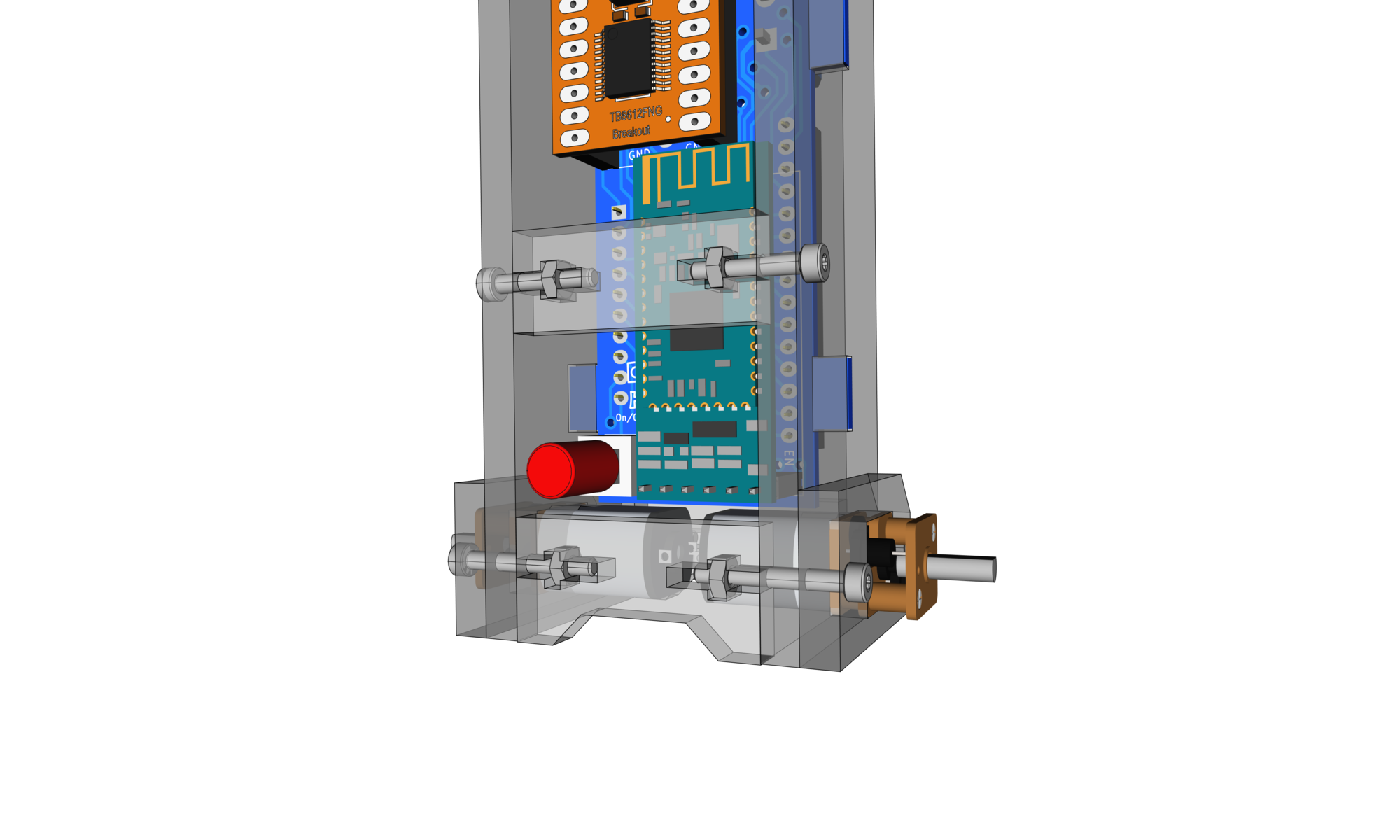

Exploded view

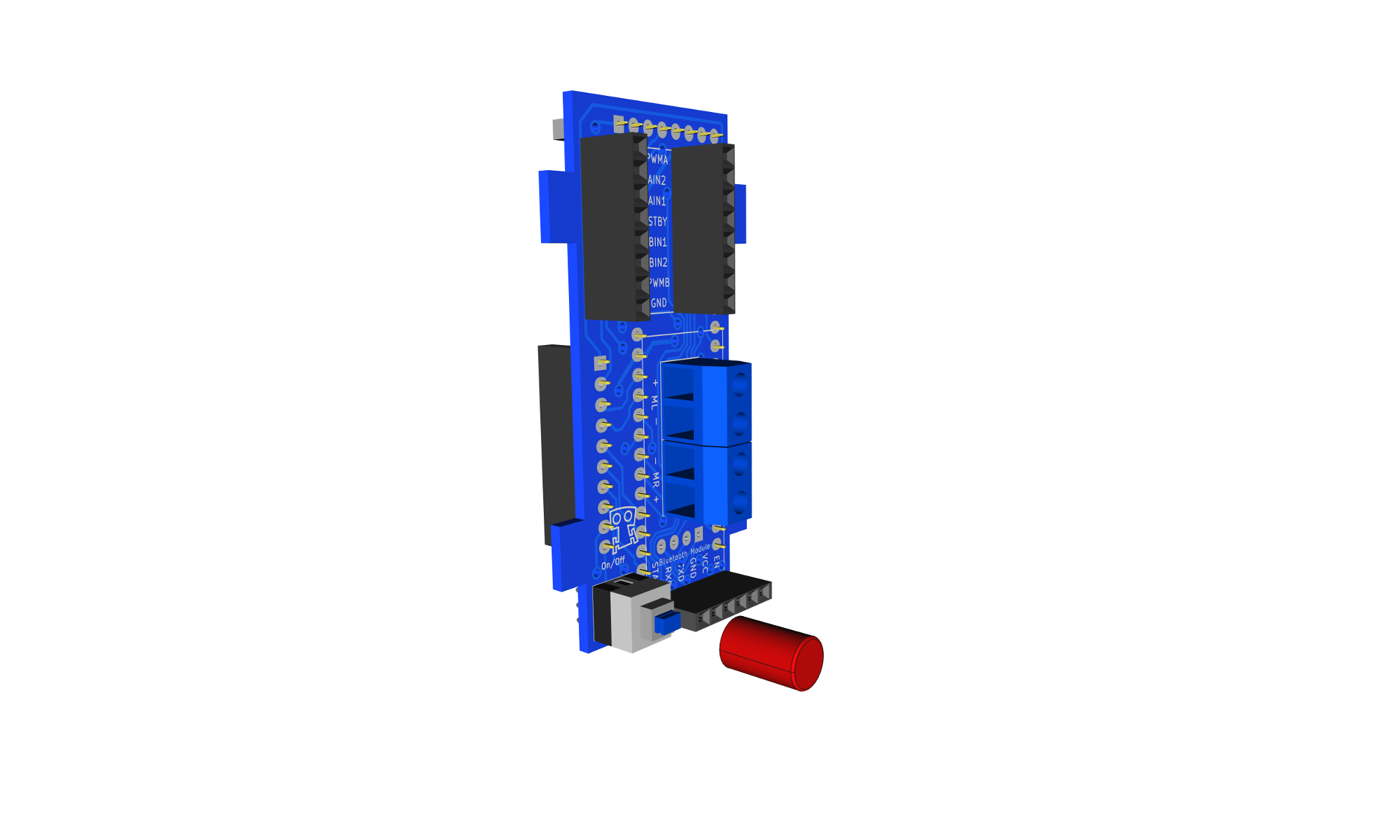

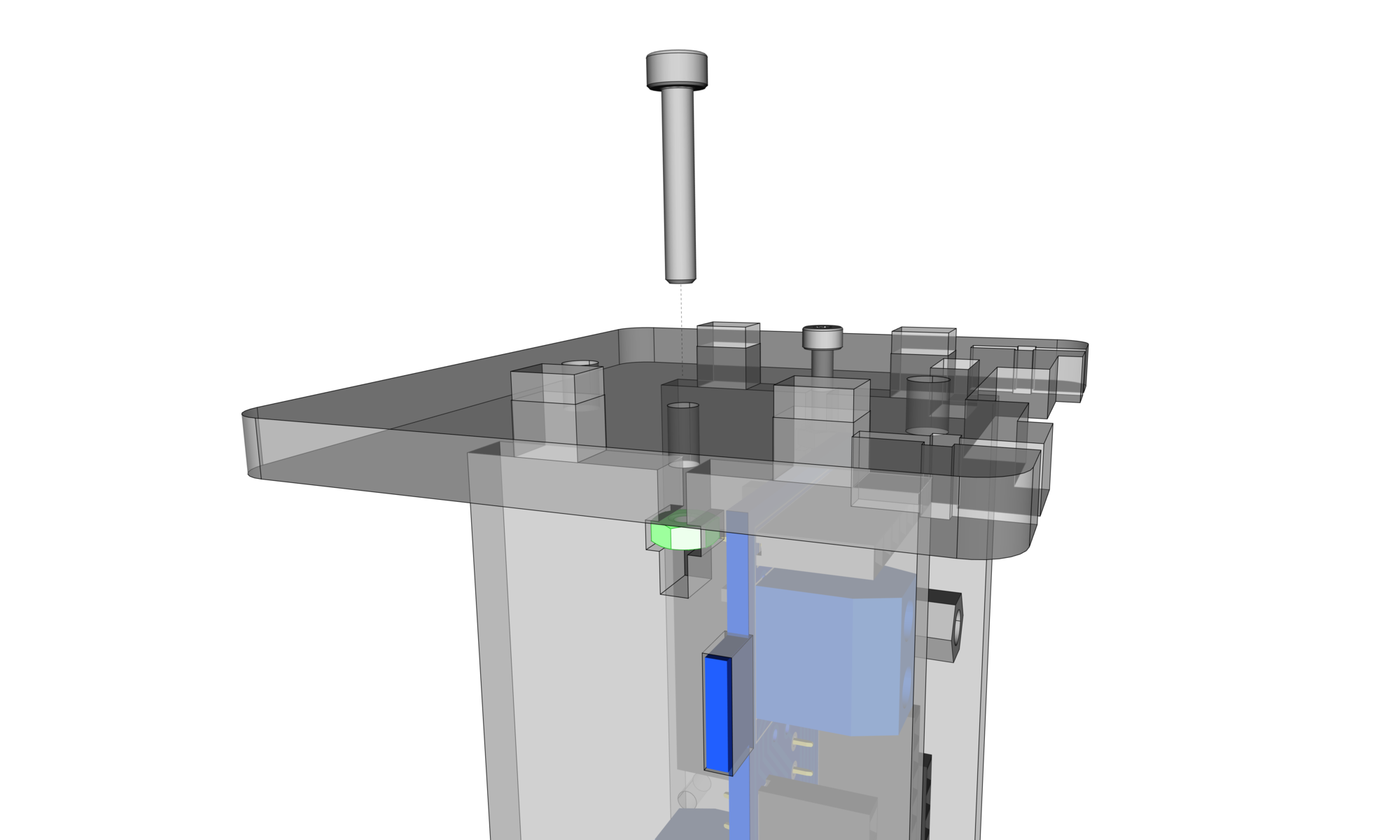

Attach power button cap

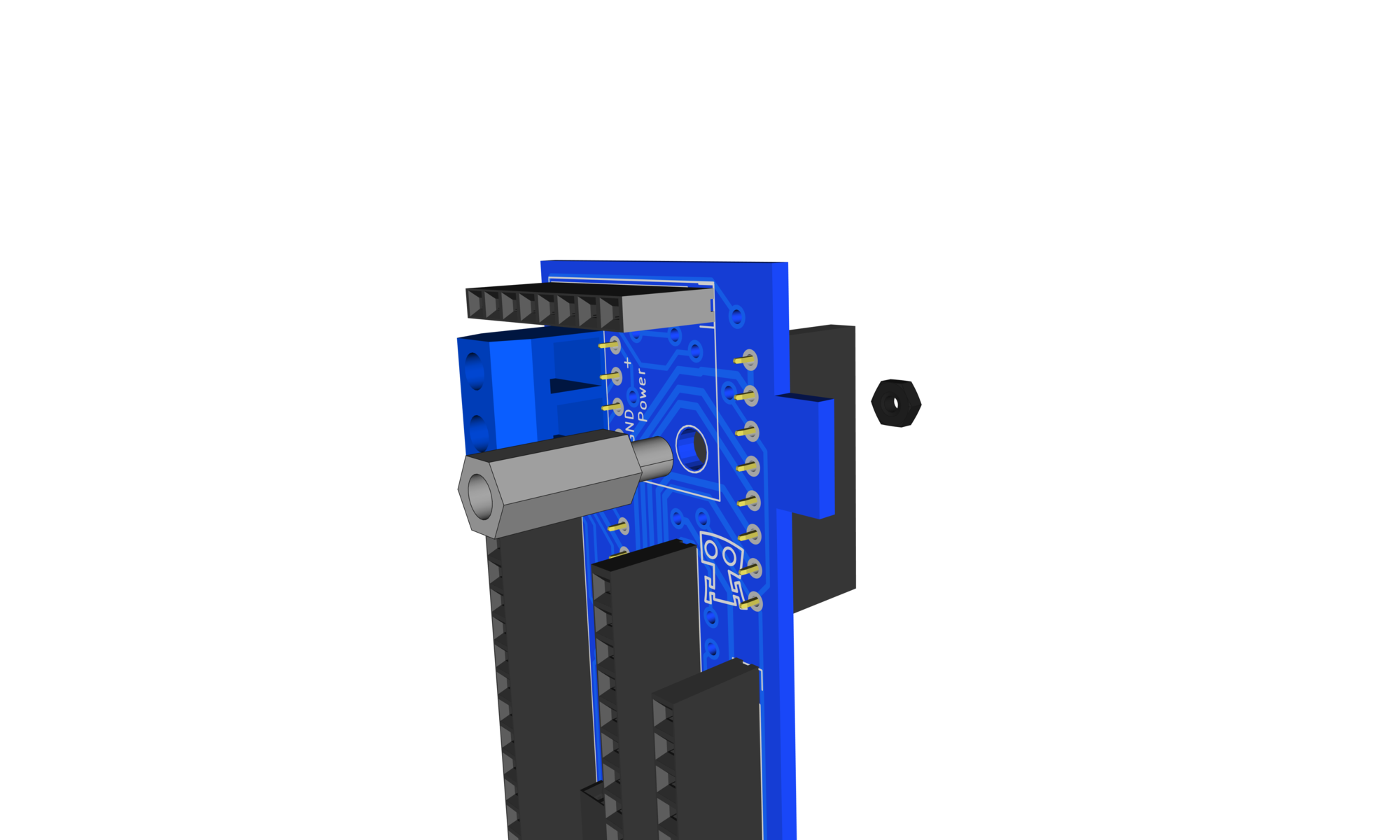

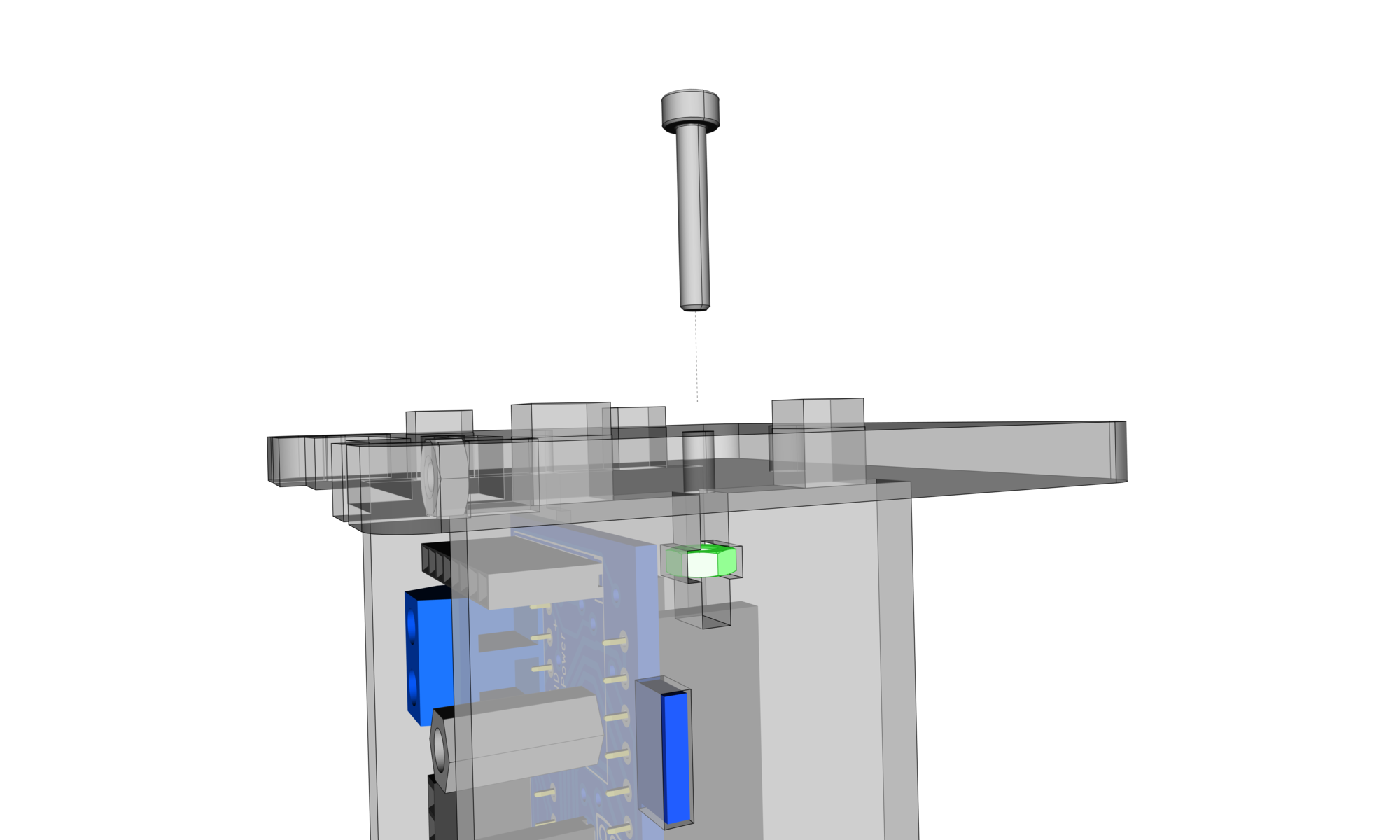

Attach stand off post

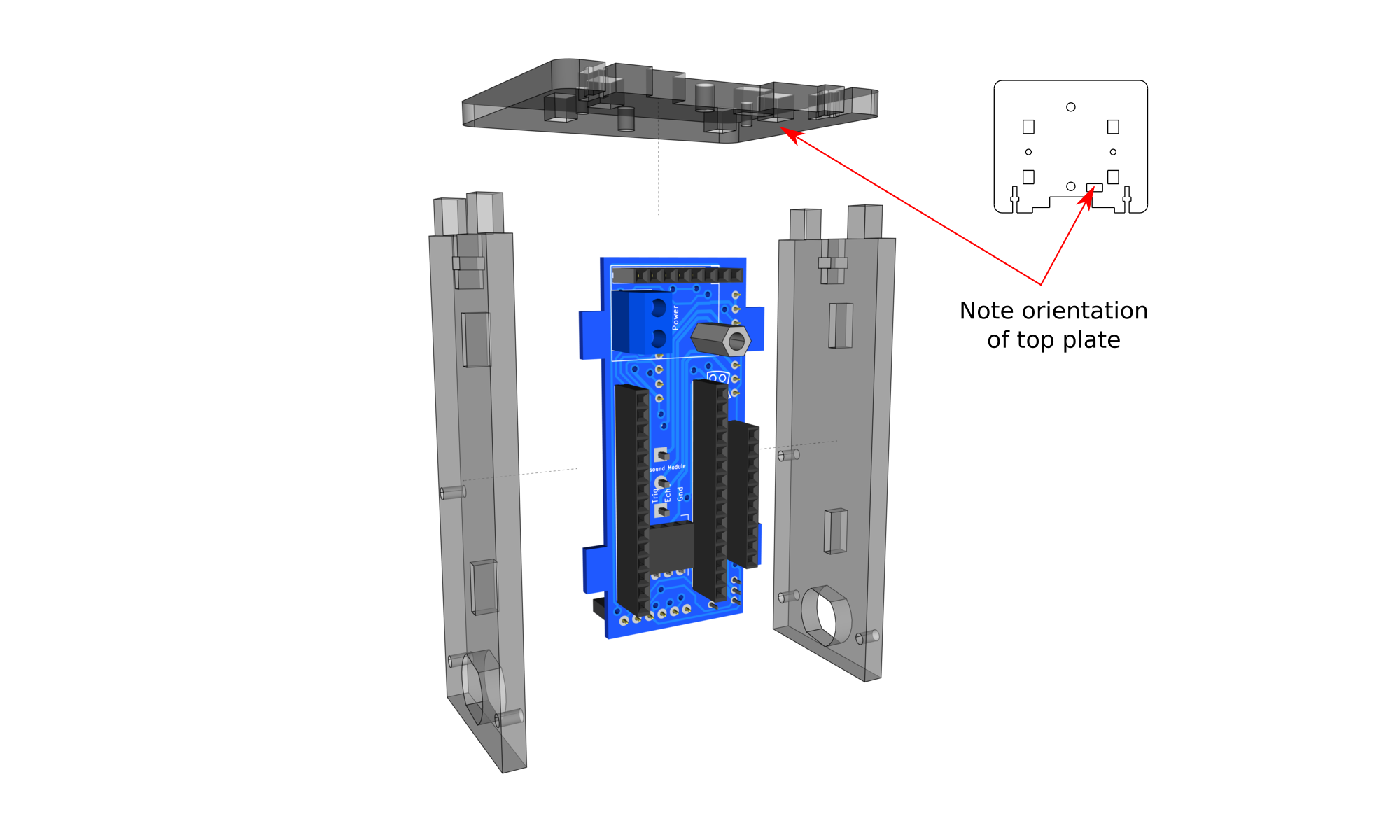

Assemble chassis

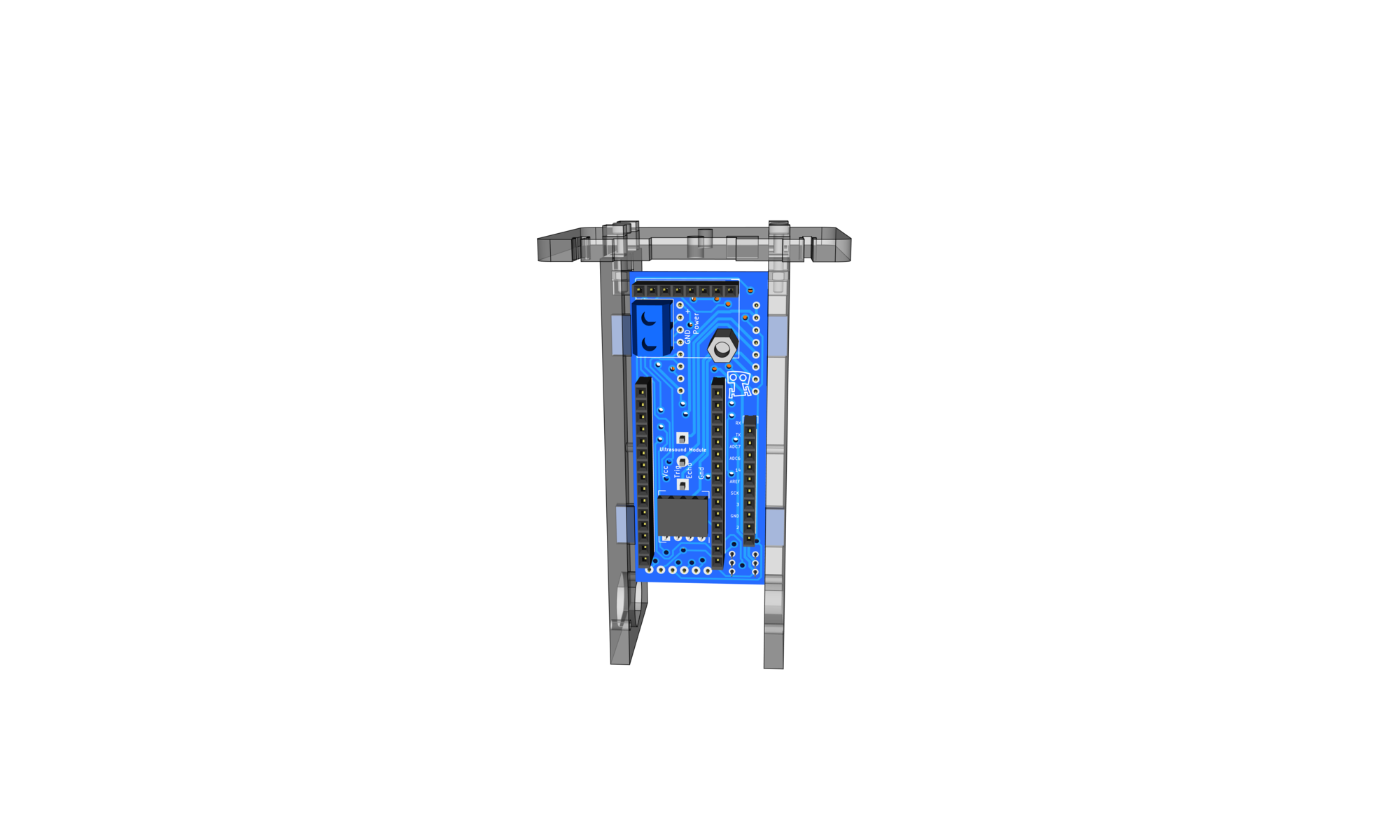

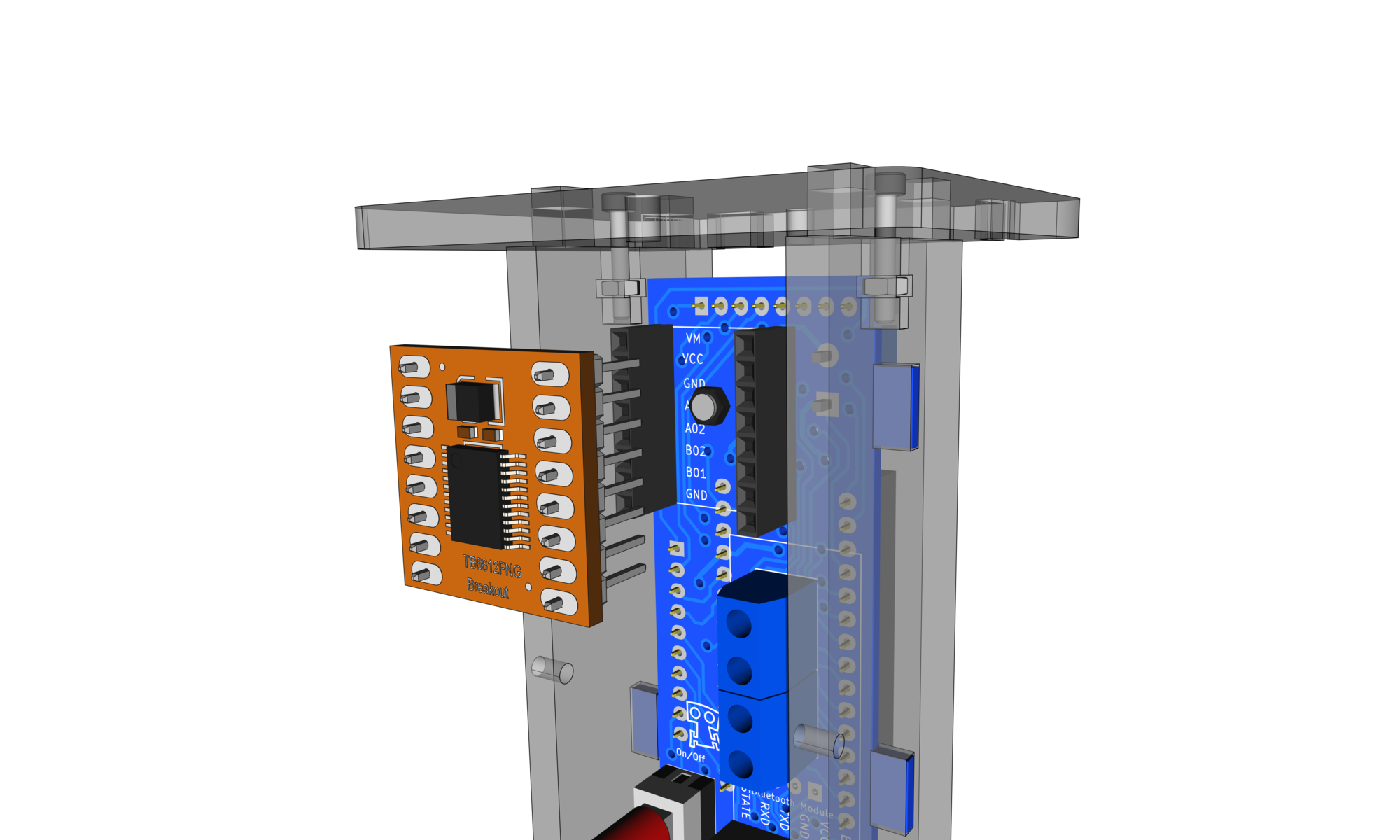

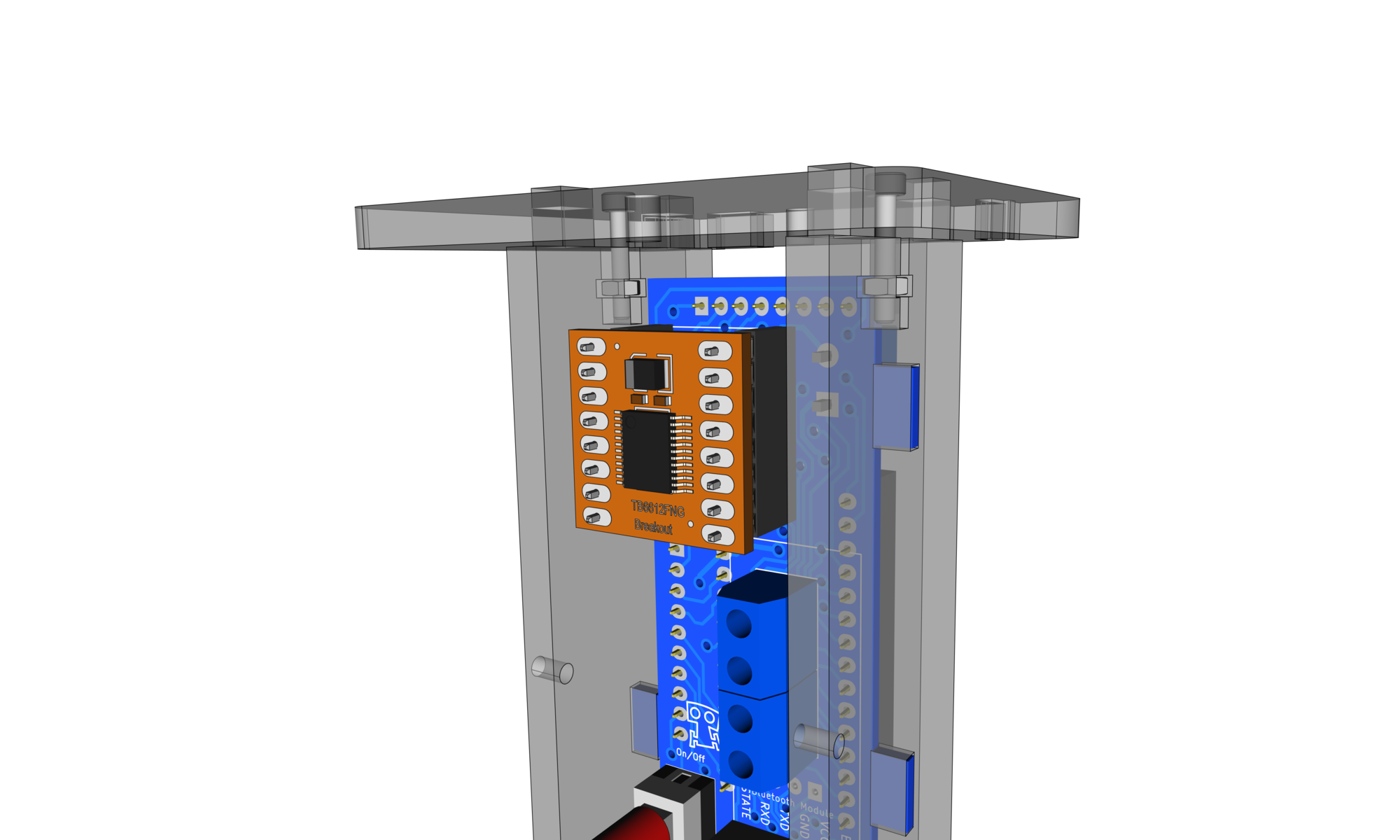

Attach motor driver board

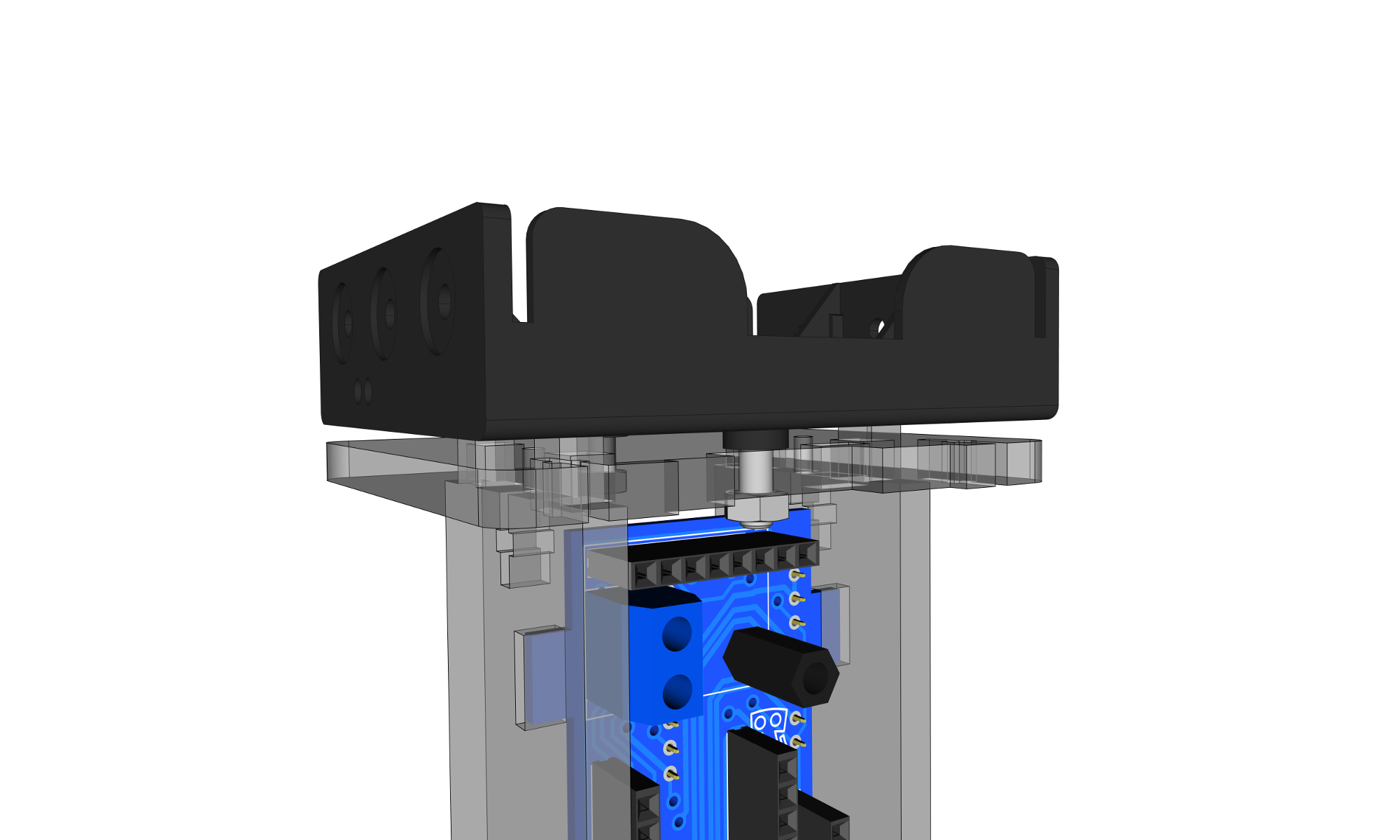

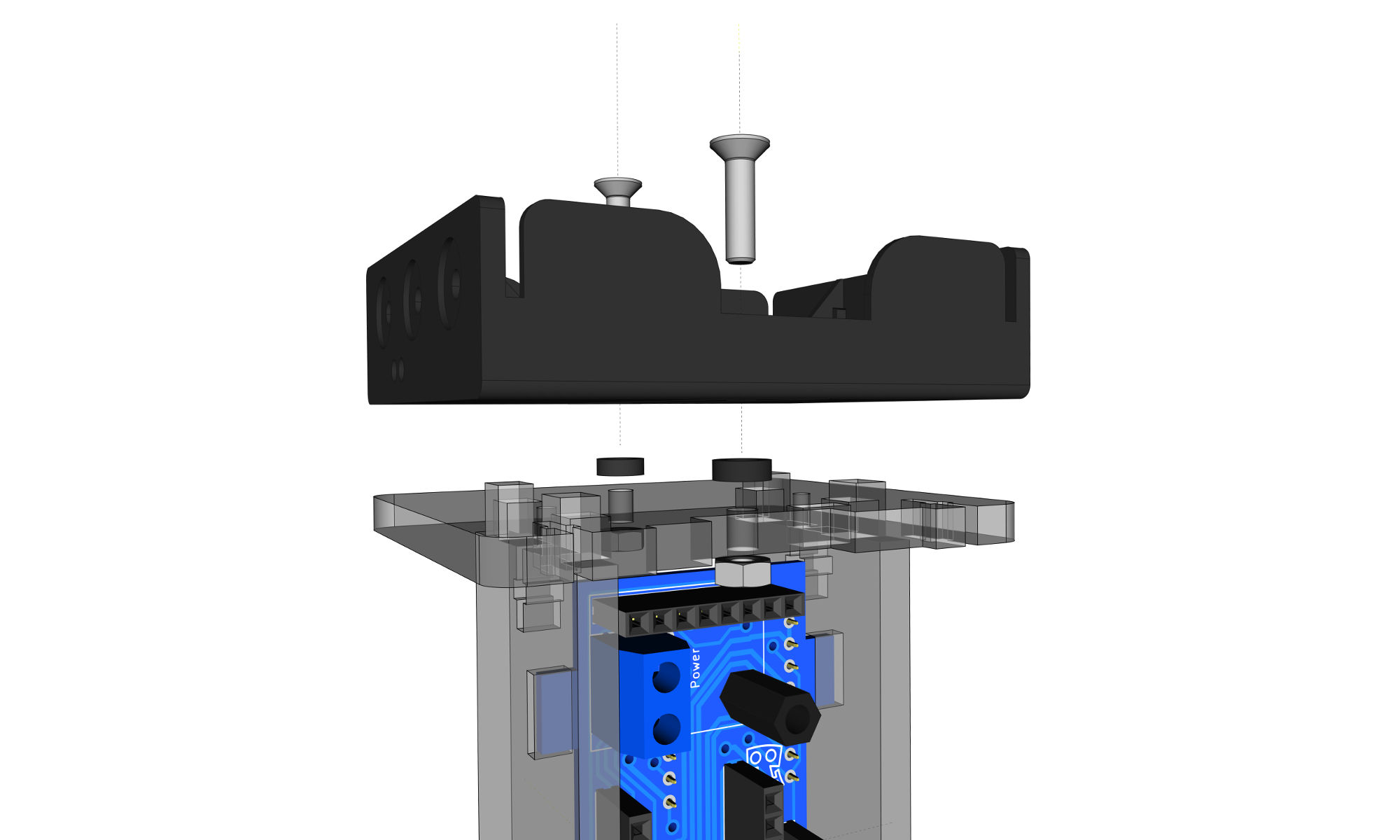

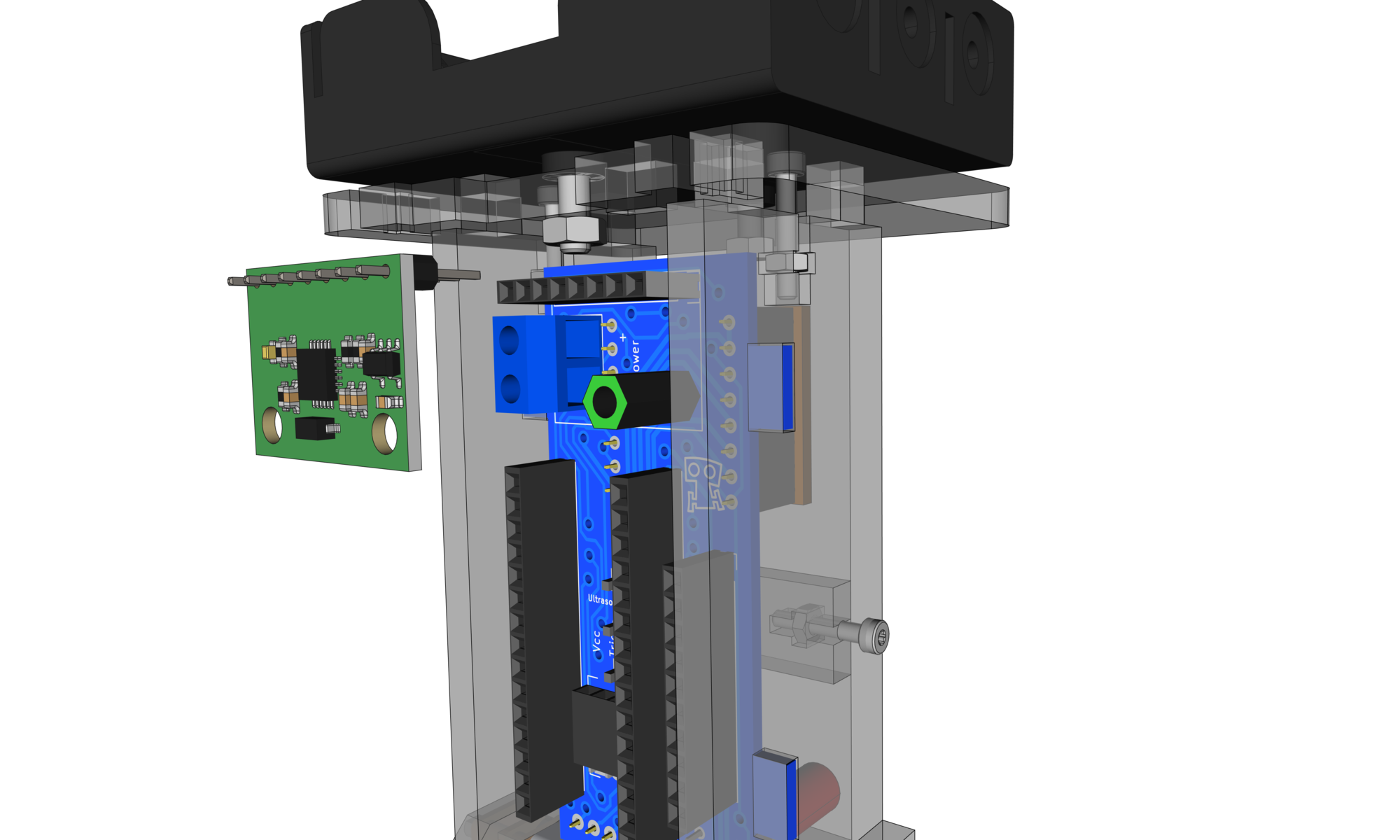

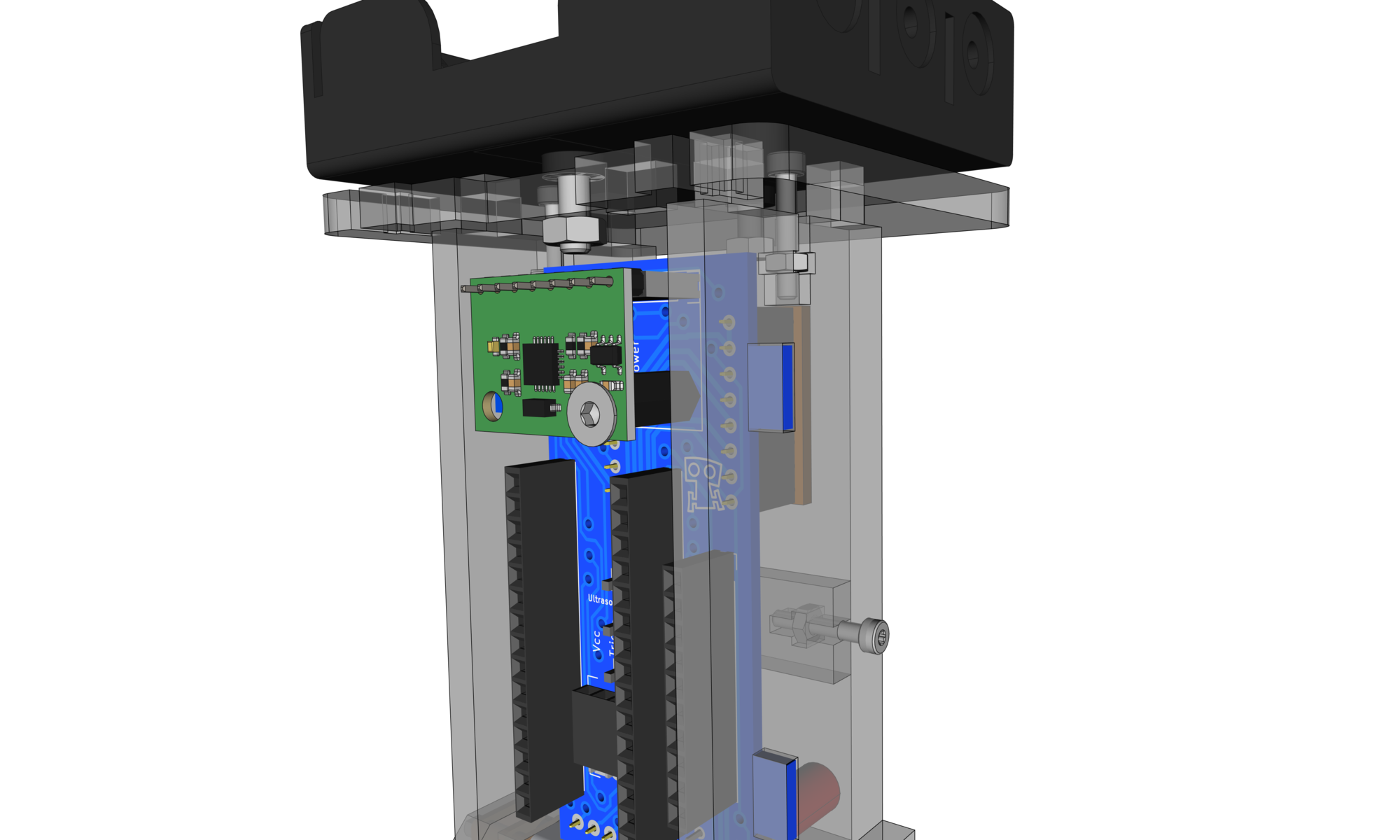

Attach battery compartment

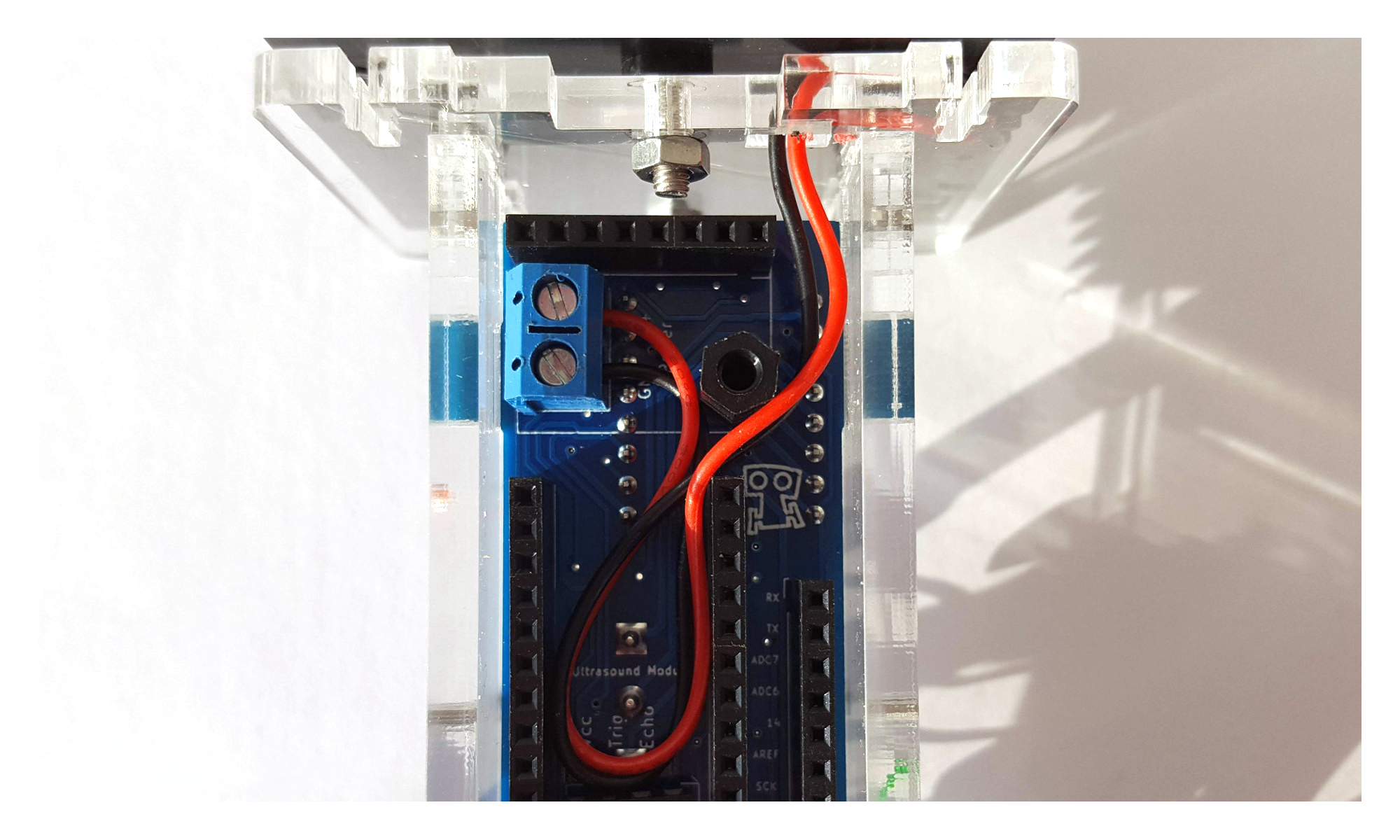

Connect wires to terminal block (DO NOT DO THIS WITH BATTERIES INSERTED!)

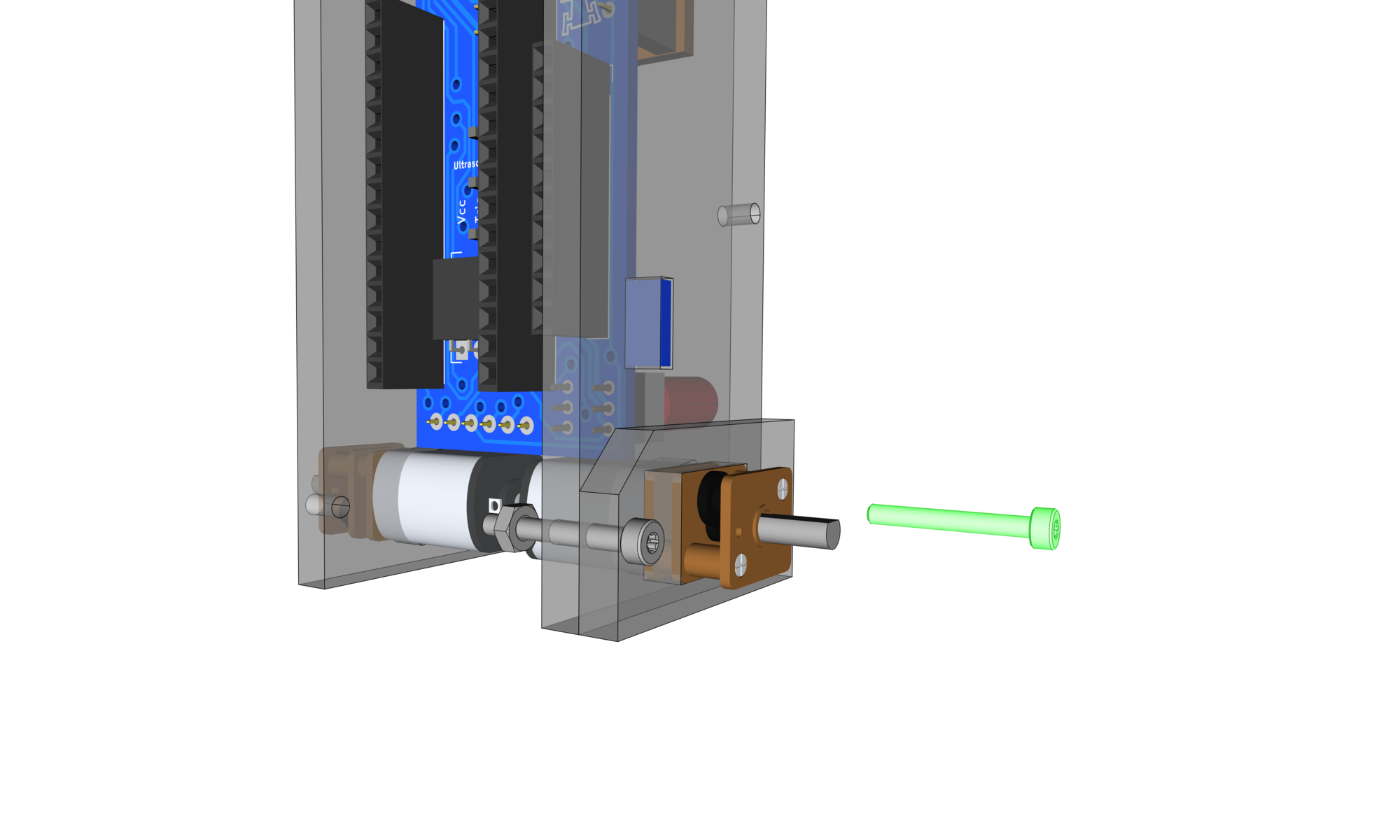

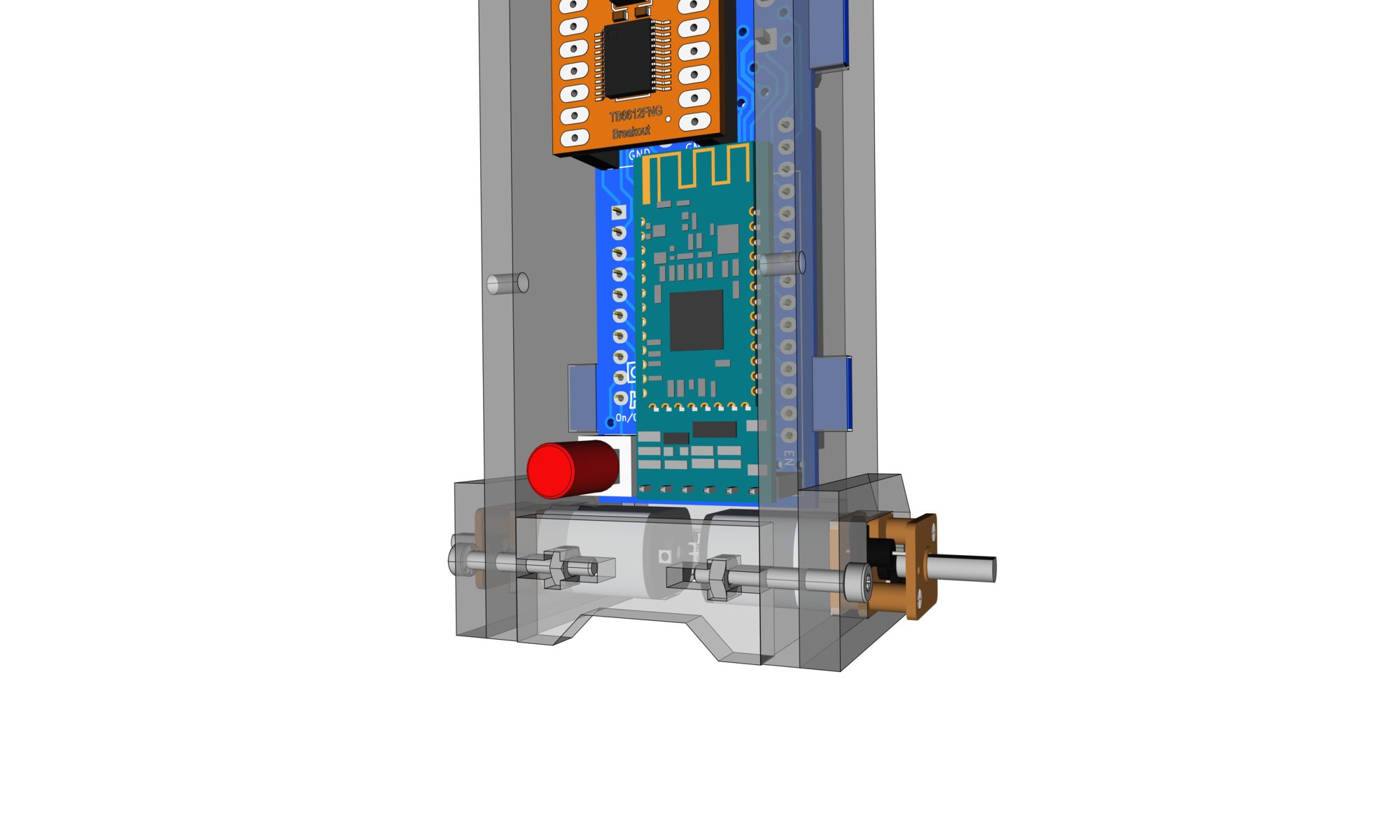

Insert motors

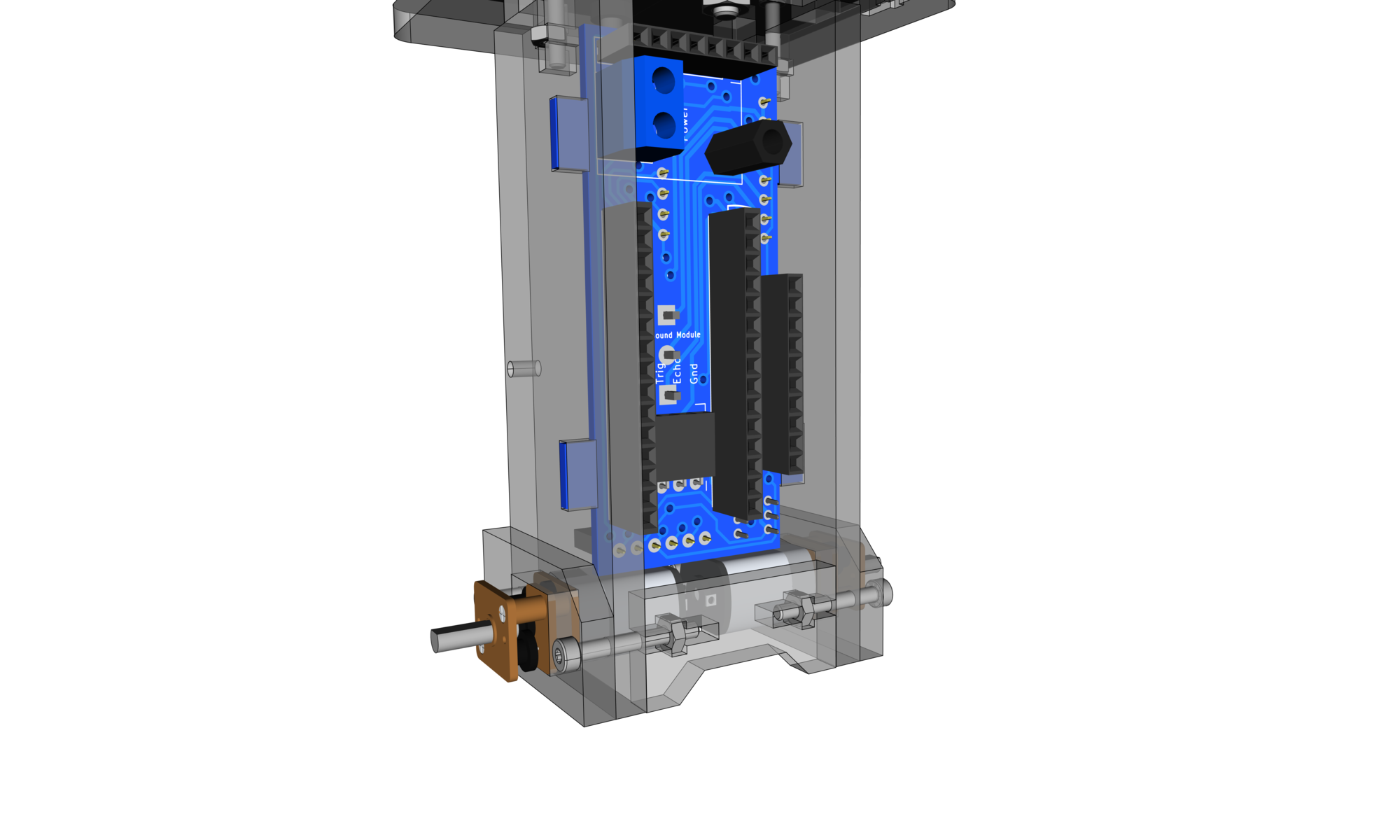

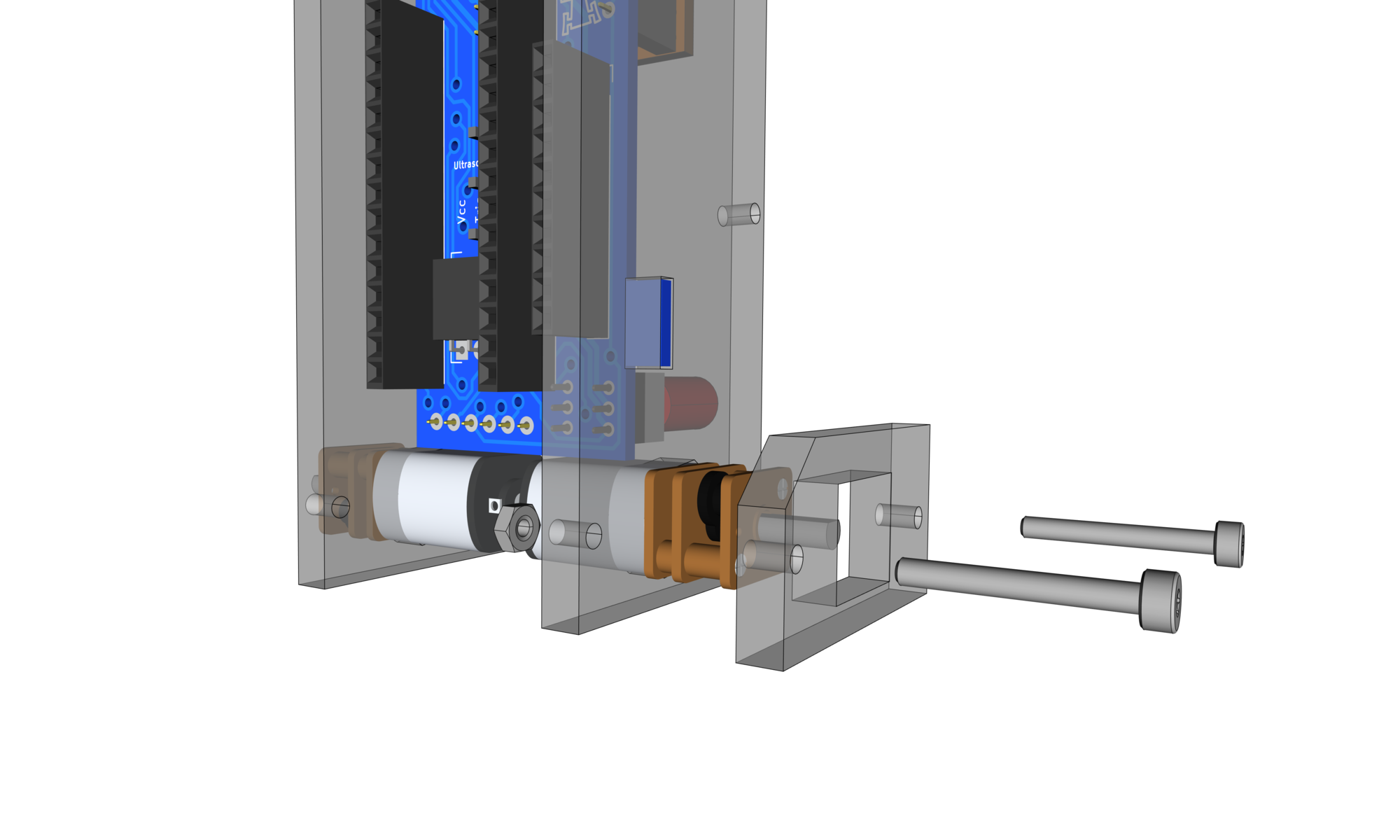

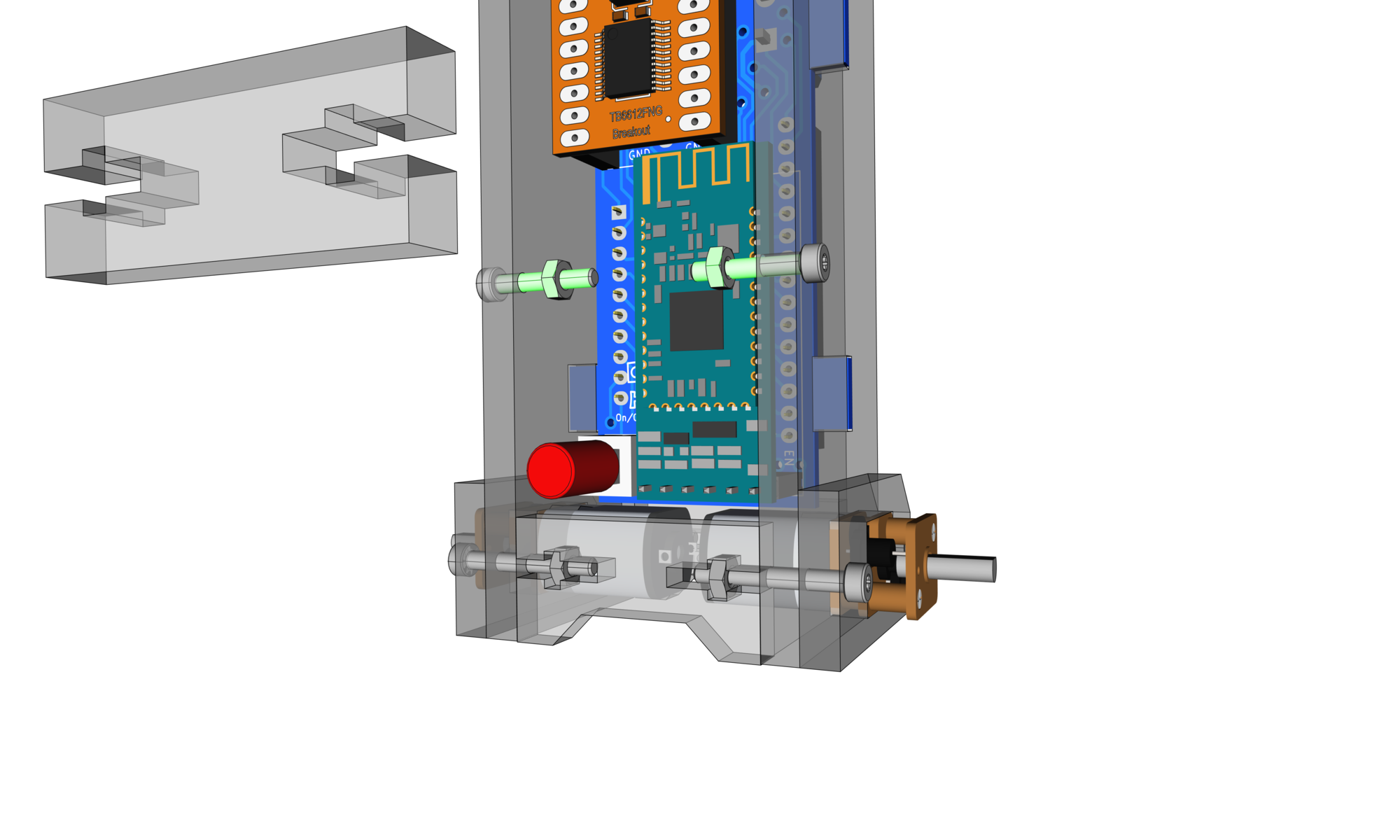

Secure motor locking plates

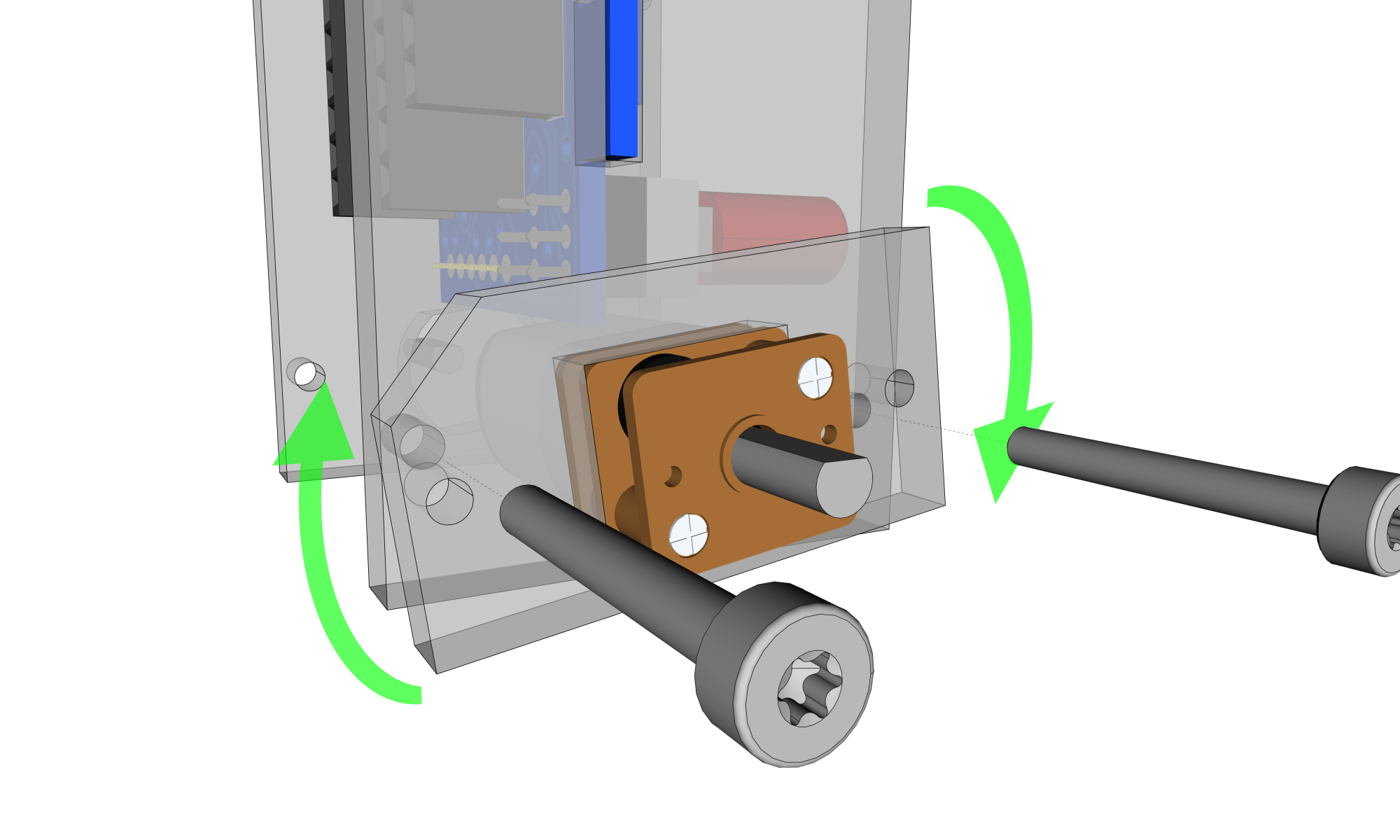

Rotate locking plate to allow screws to go through

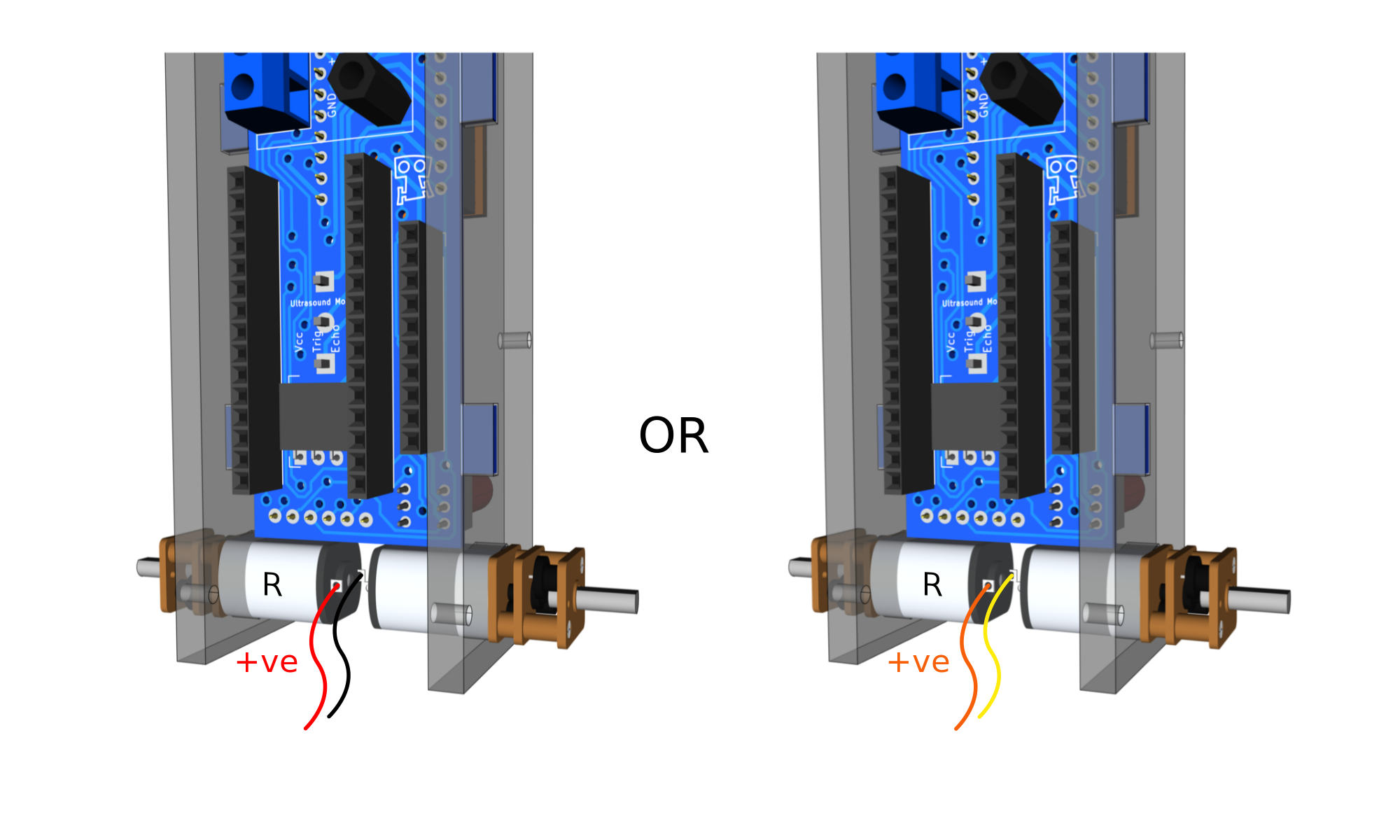

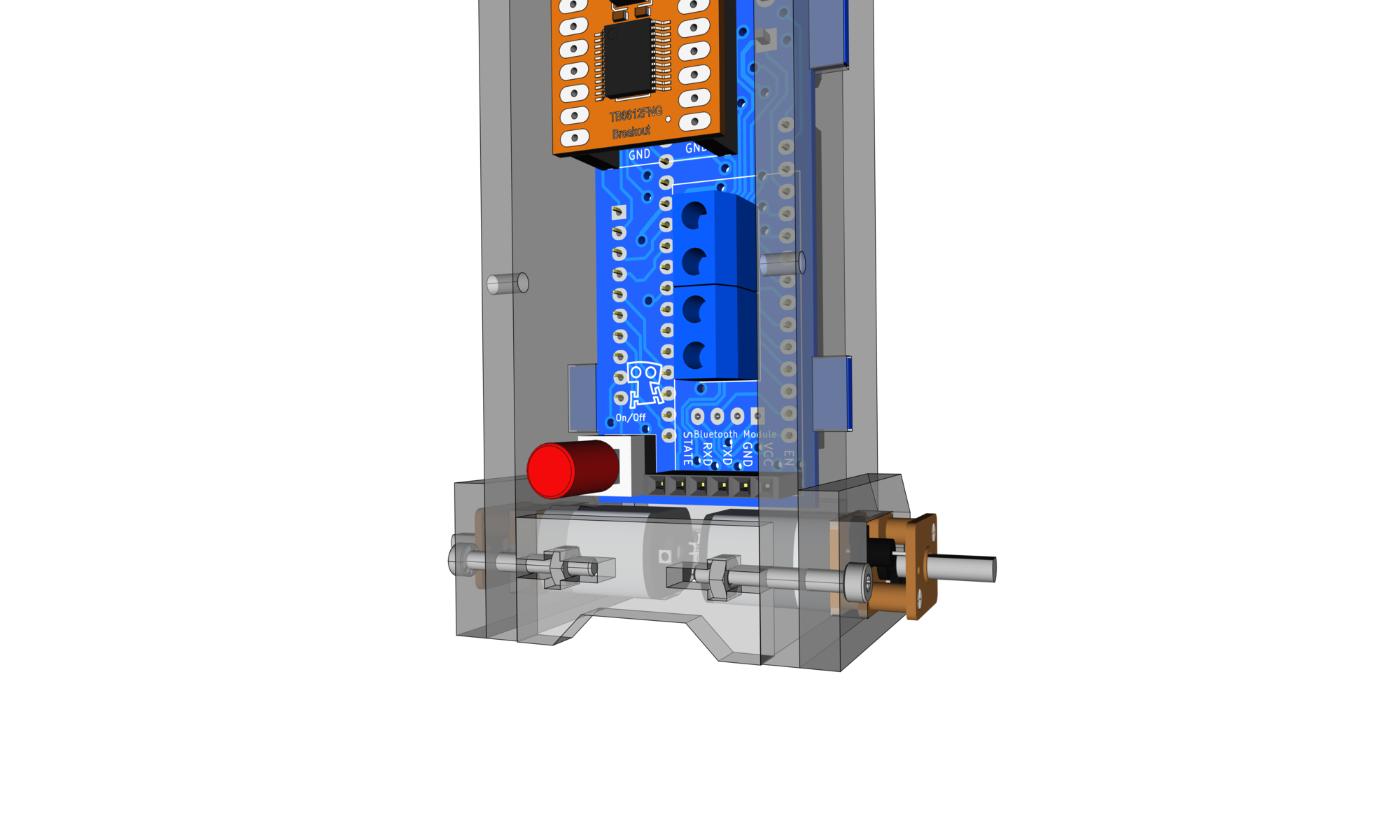

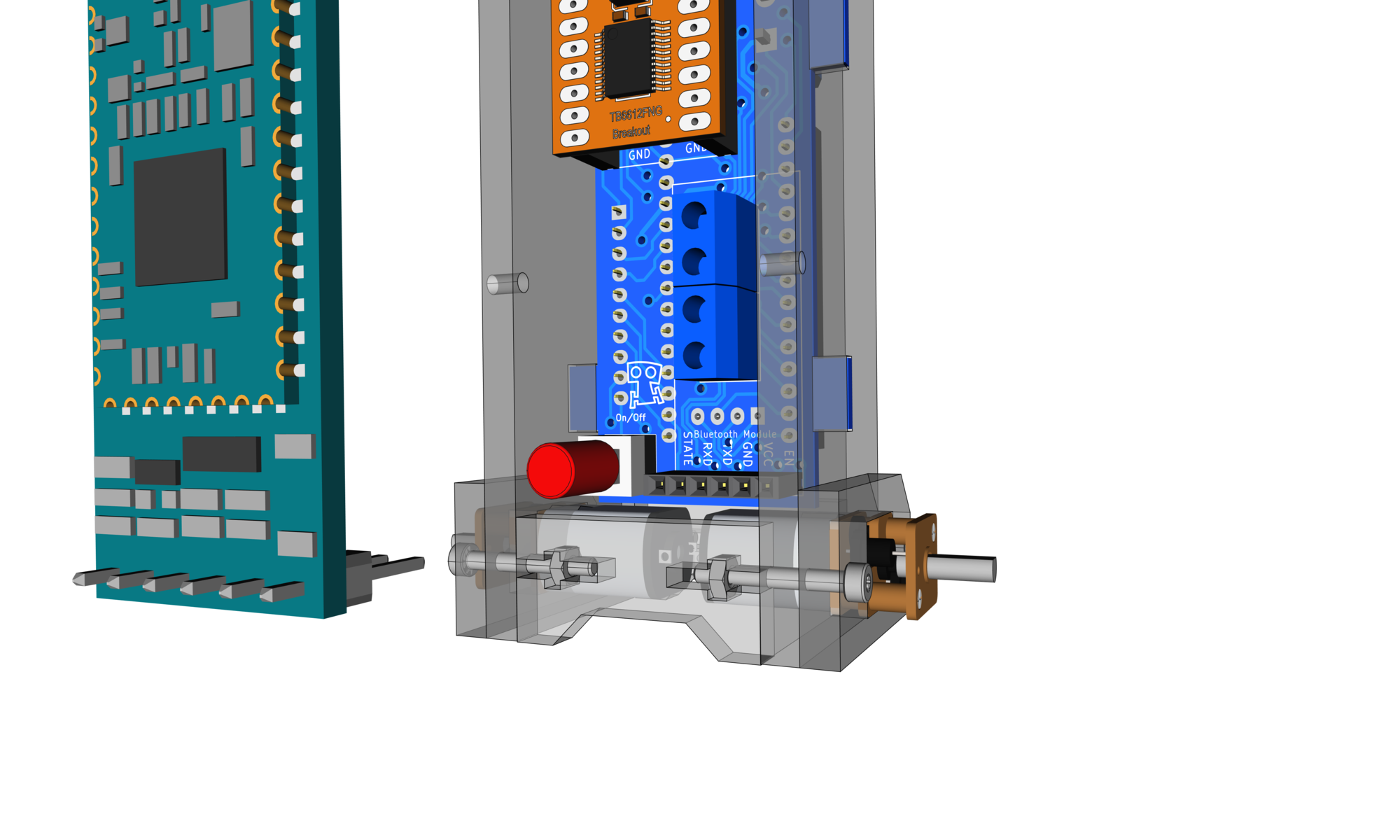

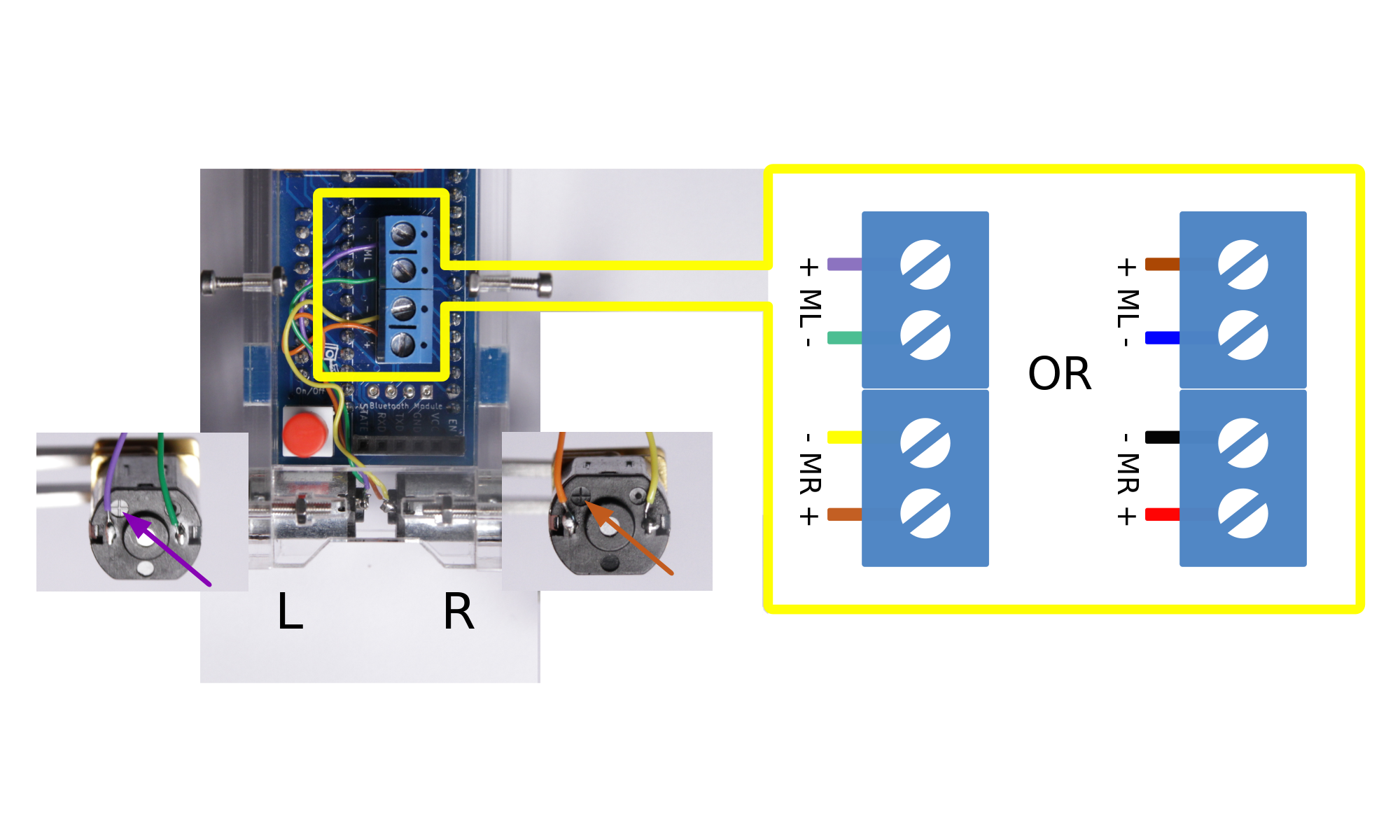

Connect motor wires to terminal blocks

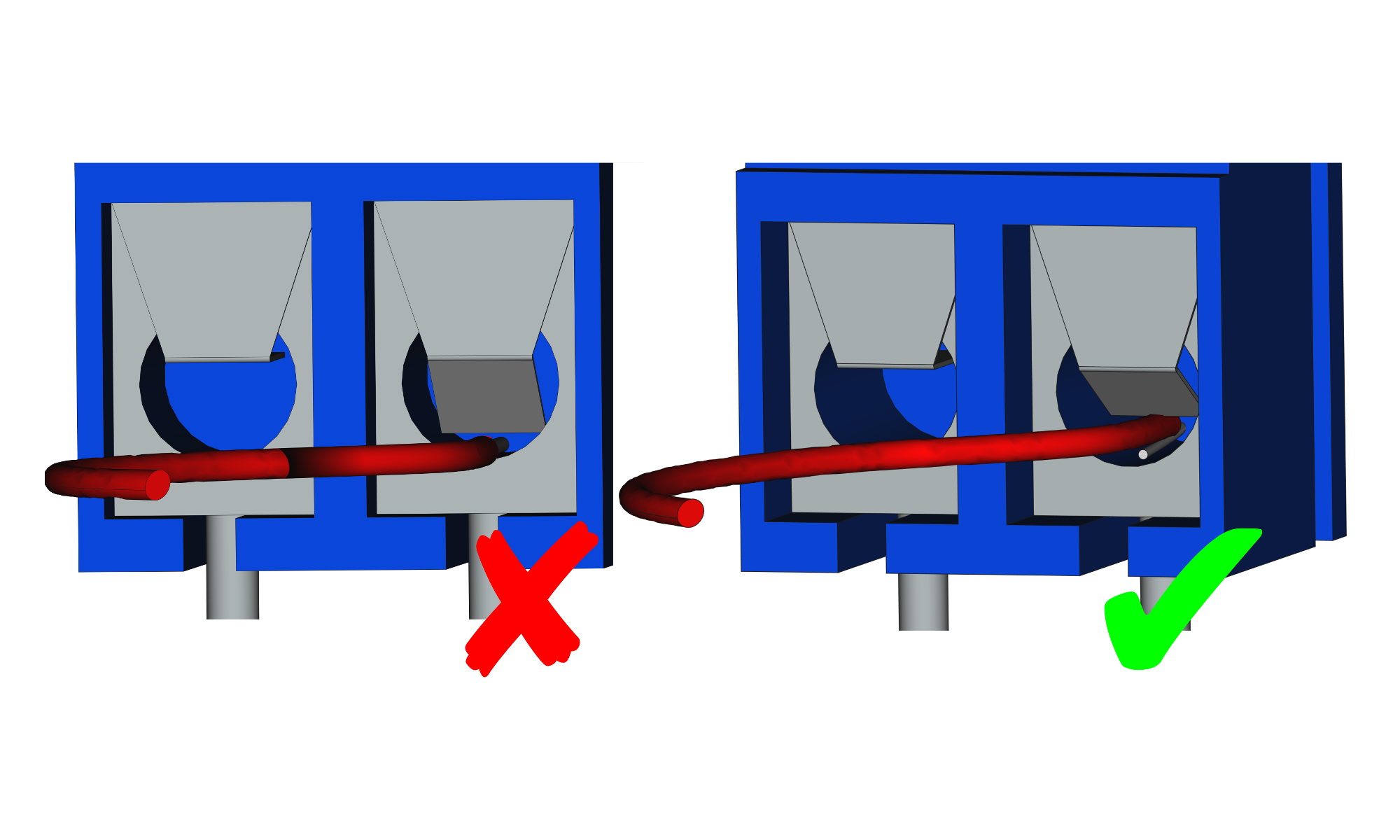

Ensure proper connection
Ensure proper connection

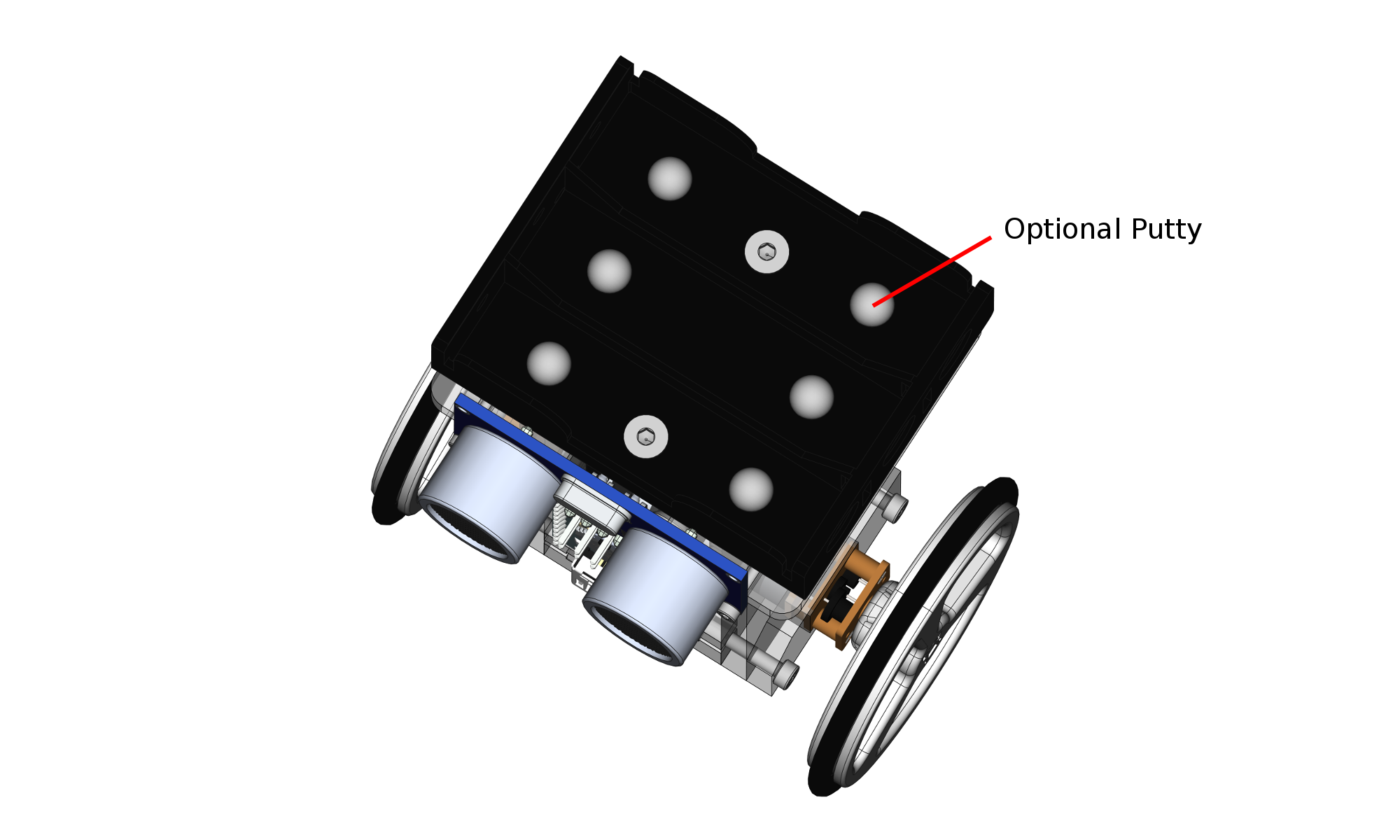

The putty has the perfect shock absorbing properties to retain the batteries on impact.

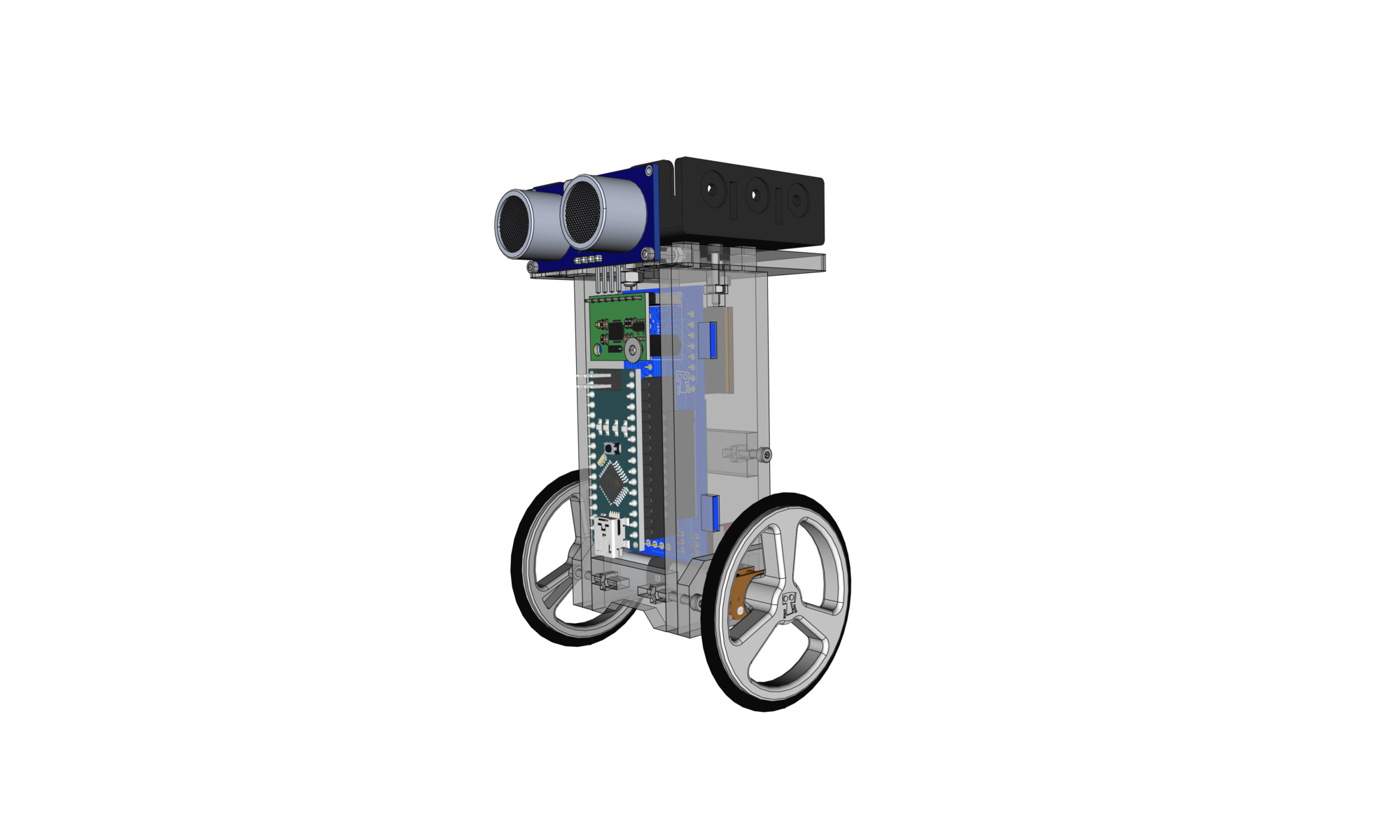

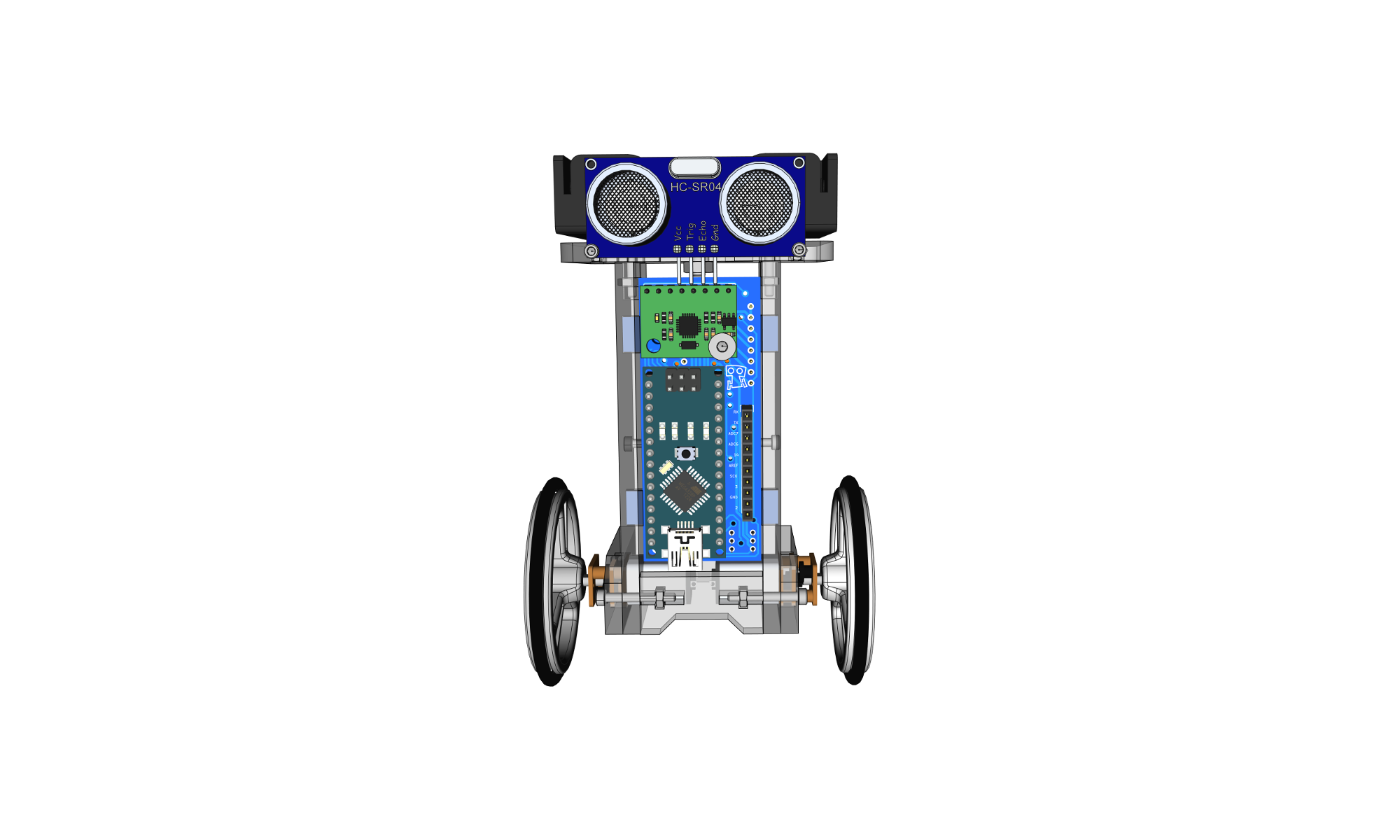

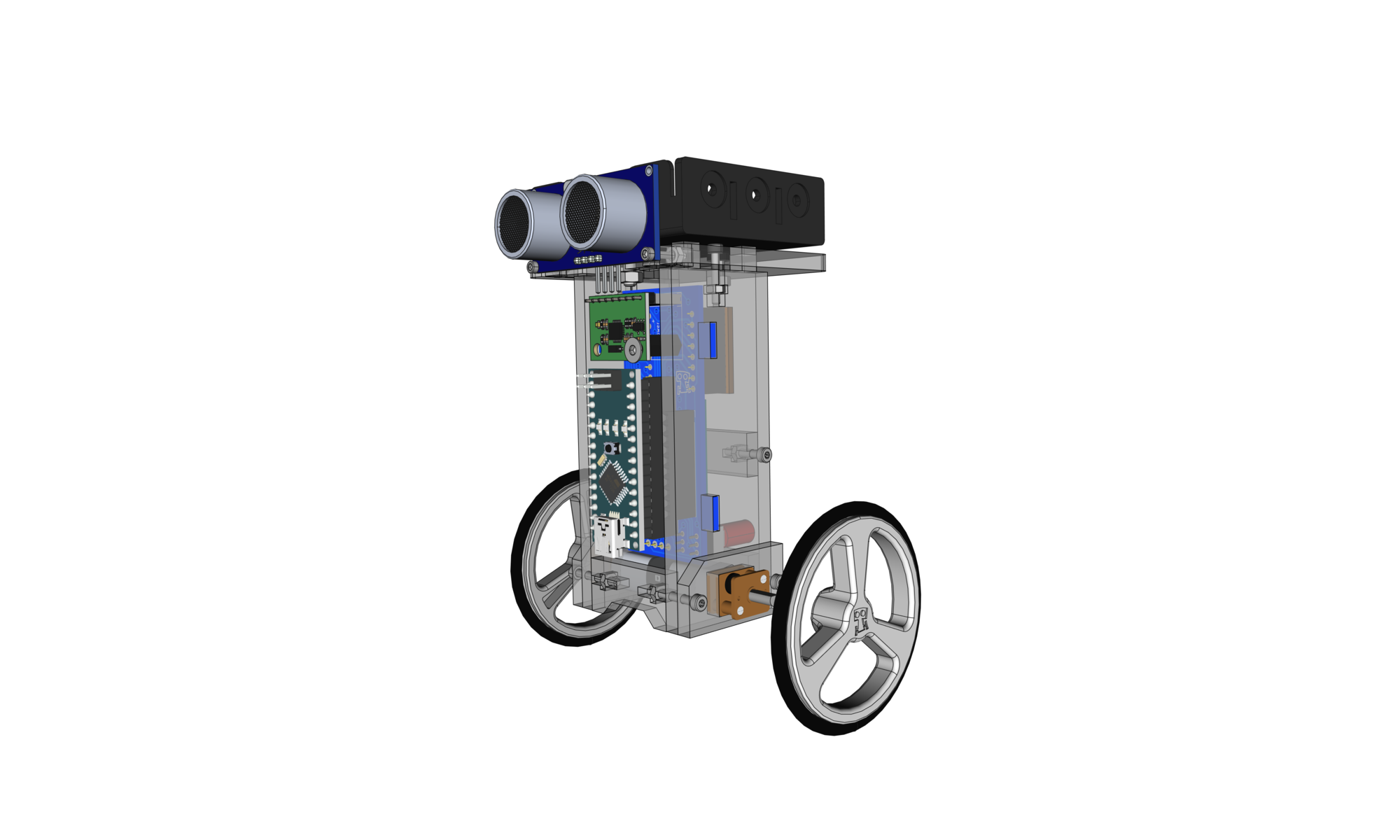

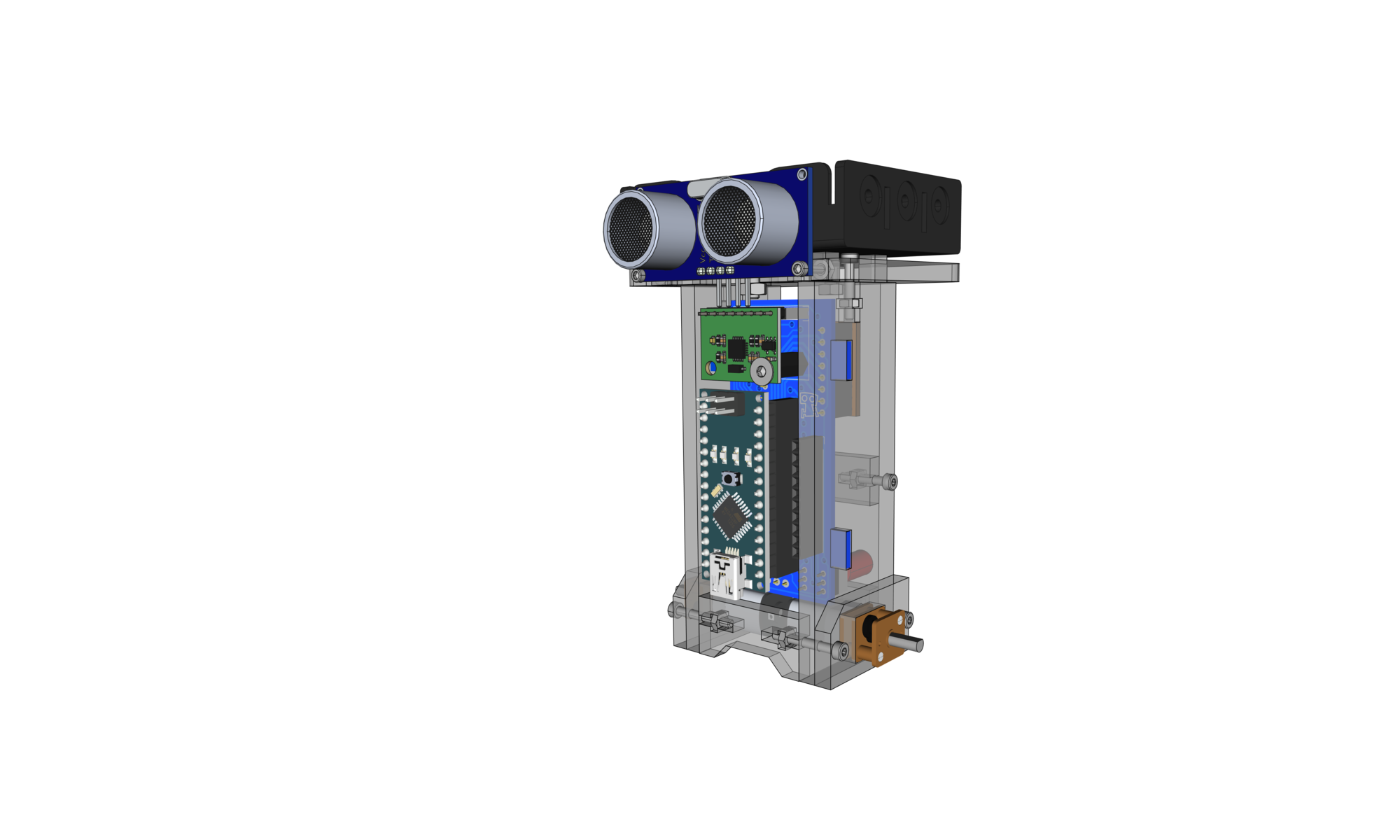

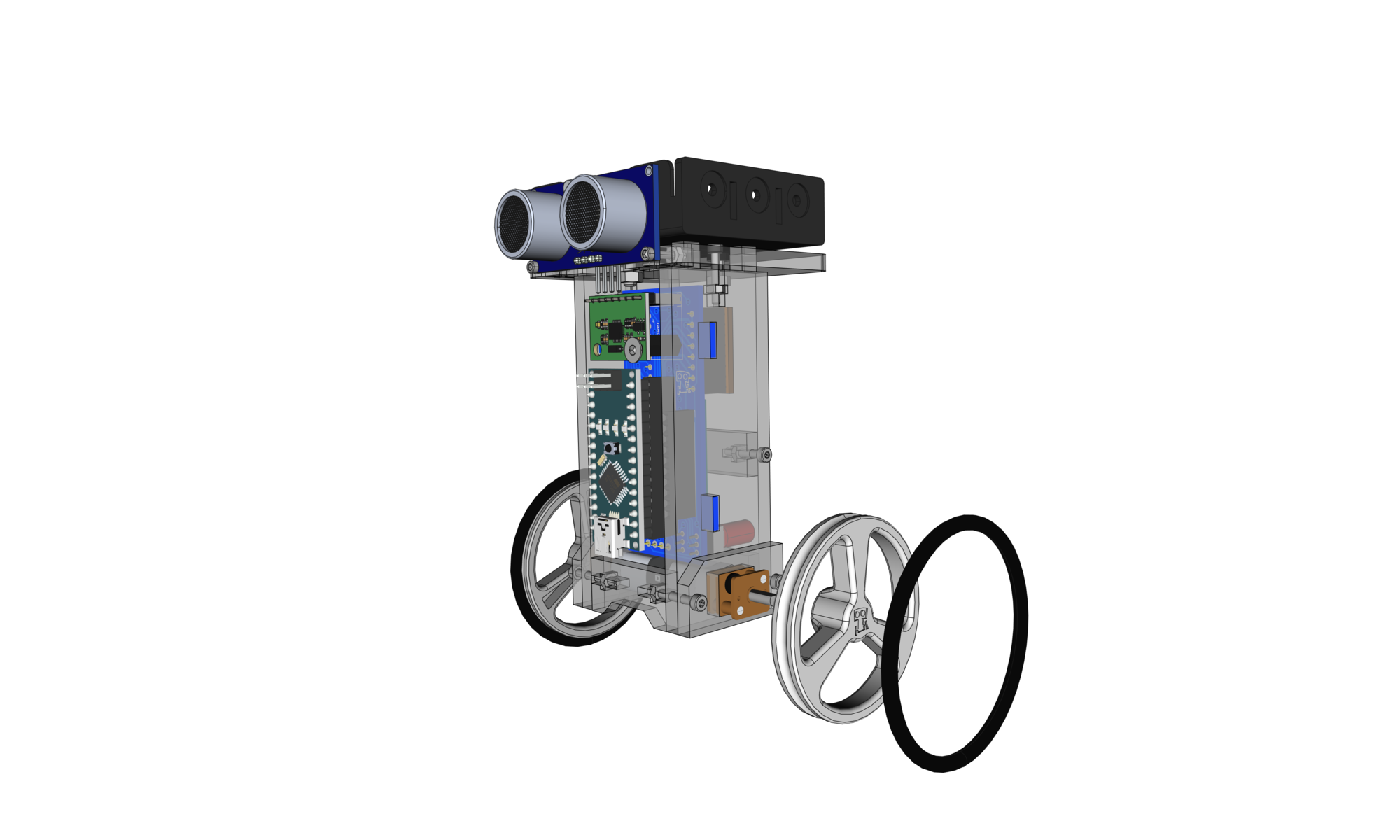

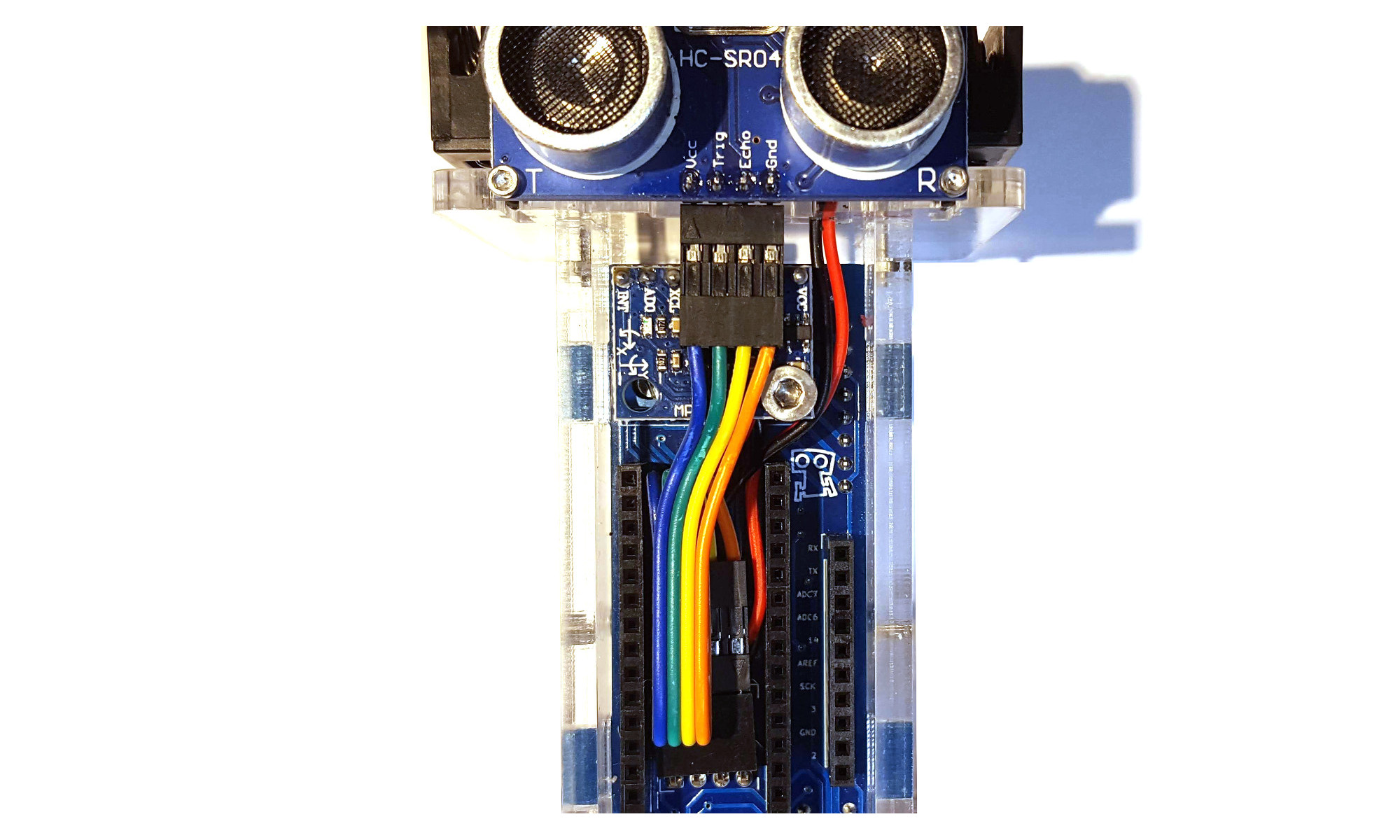

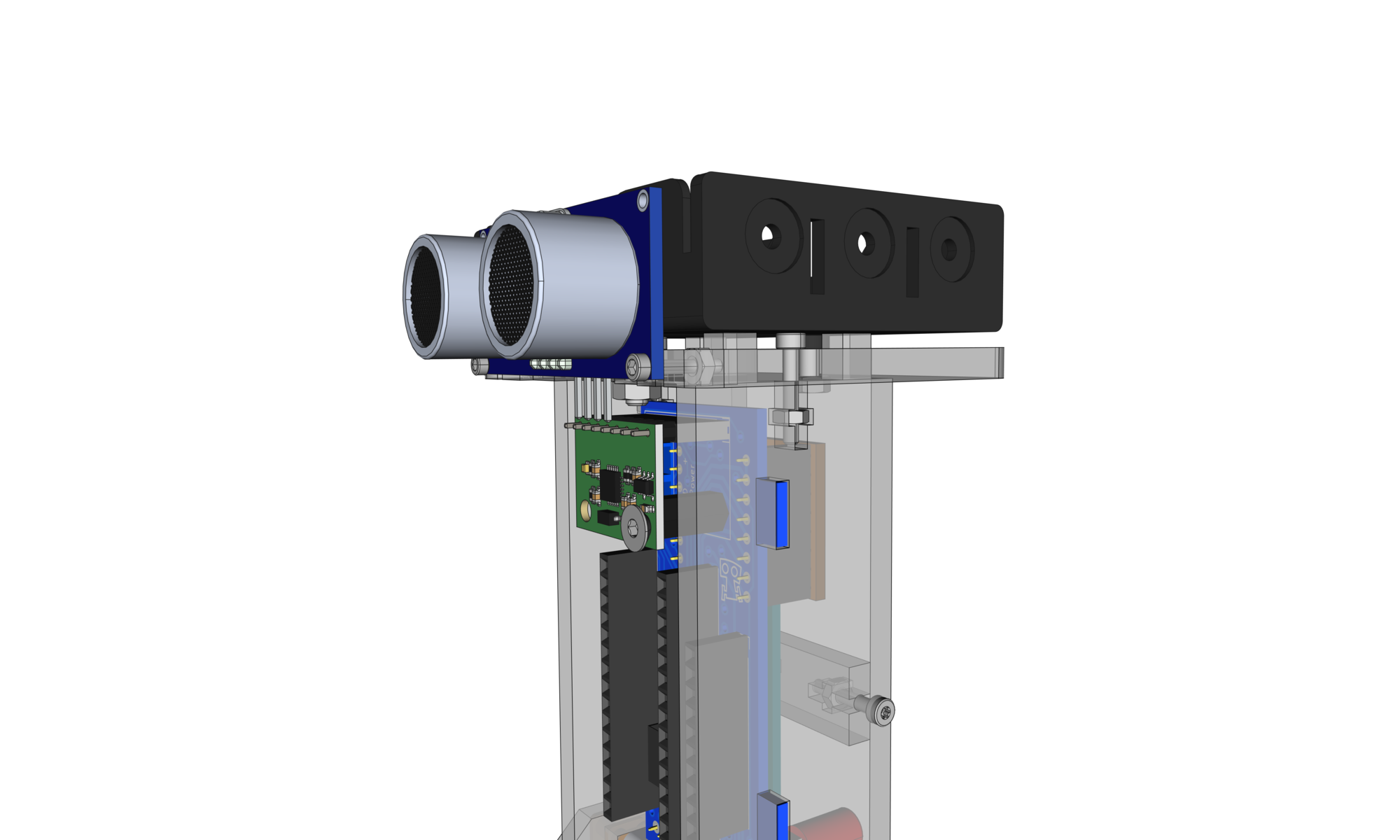

And you are done!
Best viewed in full screen. You can change the resolution and playback speed by clicking on the settings button which will appear once you have clicked on play.
Now you can go to Step 2 - Setting up bluetooth module

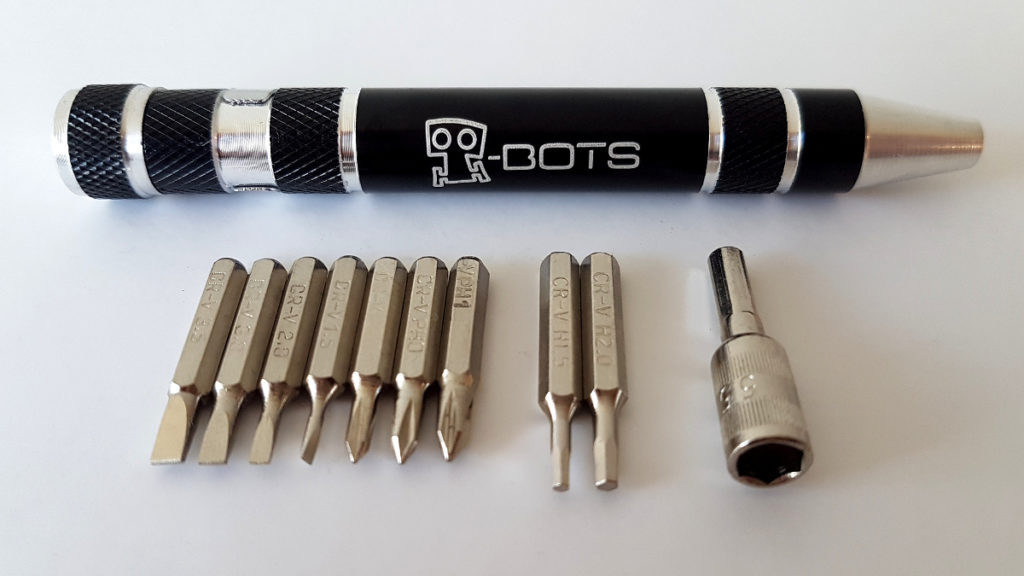

Recommended Tools
You might find a pair of tweezers helpful too.
